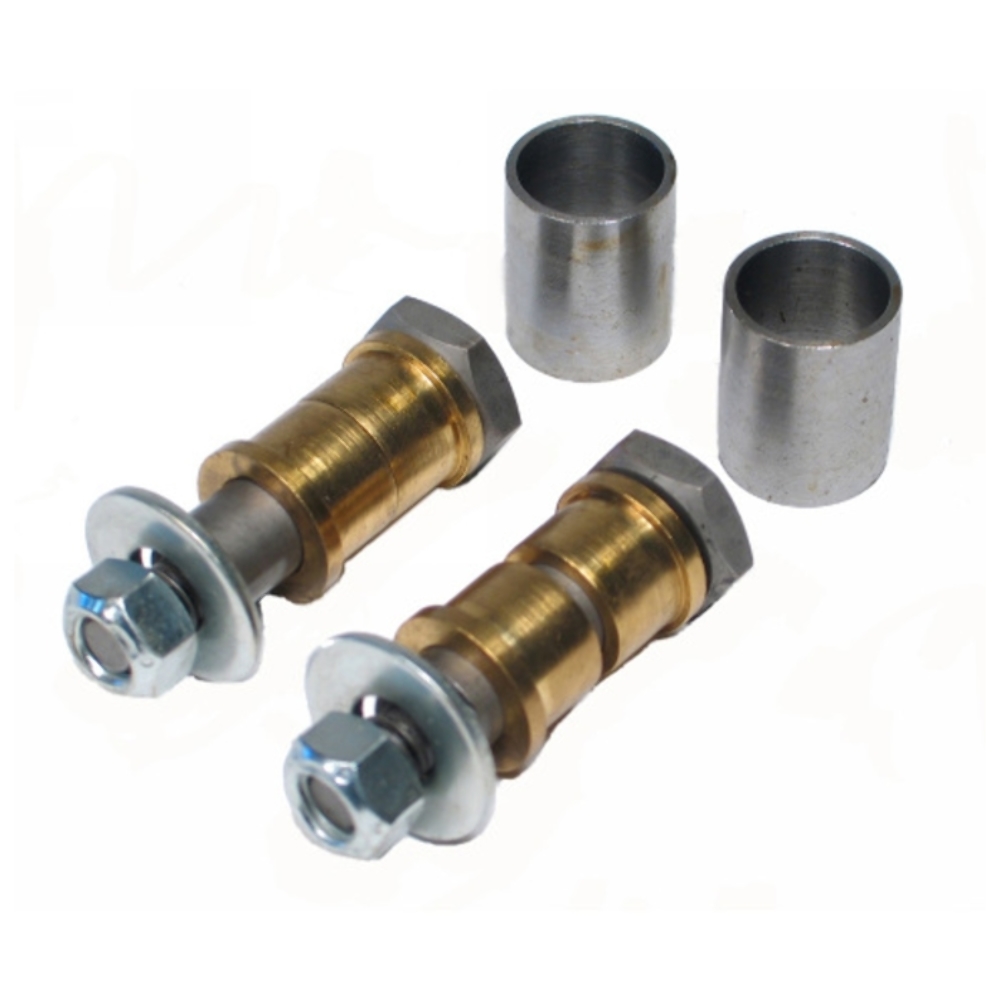

Note: Spring Perch Repair Kit~ This is a Rare Parts Inc. Diamond Series Part.
Bushing Length 1: 1.004
Bushing 1 I.D.: 0.698
Bushing 1 O.D.: 0.819
OD Step 1: -
Sleeve Length 1: 1.004
Bushing Length 2: 0.544
Bushing 2 I.D.: 0.498
Bushing 2 O.D.: 0.697
OD Step 2: 0.797
Sleeve Length 2: 0.435
Bolt Dimensions: 0.499 x 2.074
Bolt Threads: 3/8-16
Bushing Material: 2x Steel, 4x Brass
PackageContents: 2 Bolts, 6 Bushings, 2 Washers, 2 Lock Nuts, 2 Grease Fittings
- Part Number:
- 17880
- Manufacturer Part Number:
- 17880
- Quantity per Car:
- 2
- Number of Pieces:
- 2
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
