Note: Repair; Includes 7/8" Pin~ From Serial #199079, Repair; Includes 7/8" Pin, Includes 7/8" Pin, CJ6~ Includes 7/8" Pin, DJ3~ Includes 7/8" Pin, Repair; W/ Solid Front Suspension; Includes 7/8" Pin
Drive Type: RWD, 4 X 2, FWD, 4 X 4, 4WD, AWD
Bolt Length: 2.78
Bolt Dia.: 0.432
Thread Size: 7/16-20
Nut Dia.: 11/16
Lockwasher Dia.: -
Bell Crank Shaft Length: 4.438
Bell Crank Shaft Dia.: 0.871
Bell Crank Shaft Thread Size: 5/8-18
Sleeve Bearing Length: 1.613
Sleeve Bearing Dia.: 1.371
Spacer Dia.: -
Spacer Length: -
Upper Bell Crank Shaft Washer Dia.: 1.718
Lower Bell Crank Shaft Washer Dia.: 1.061
Seal Dia.: -
Bell Crank Shaft Nut Dia.: 15/16

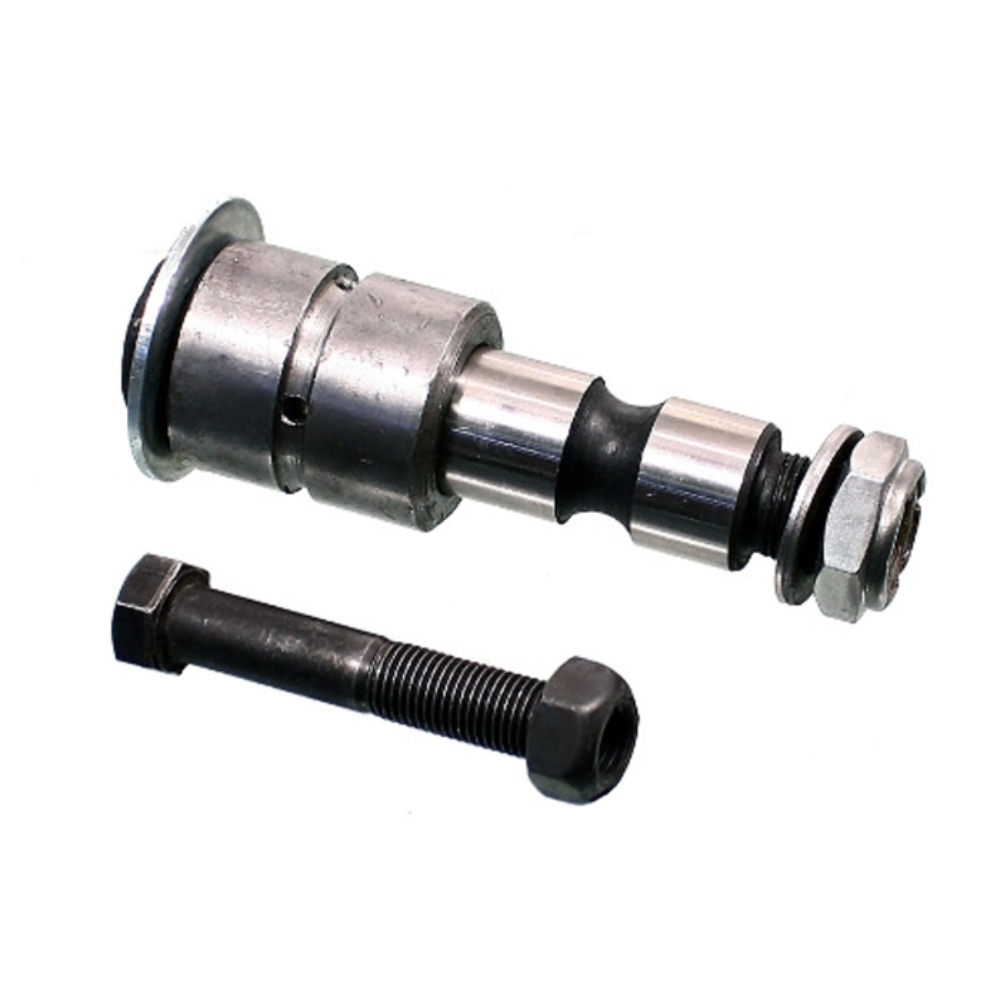

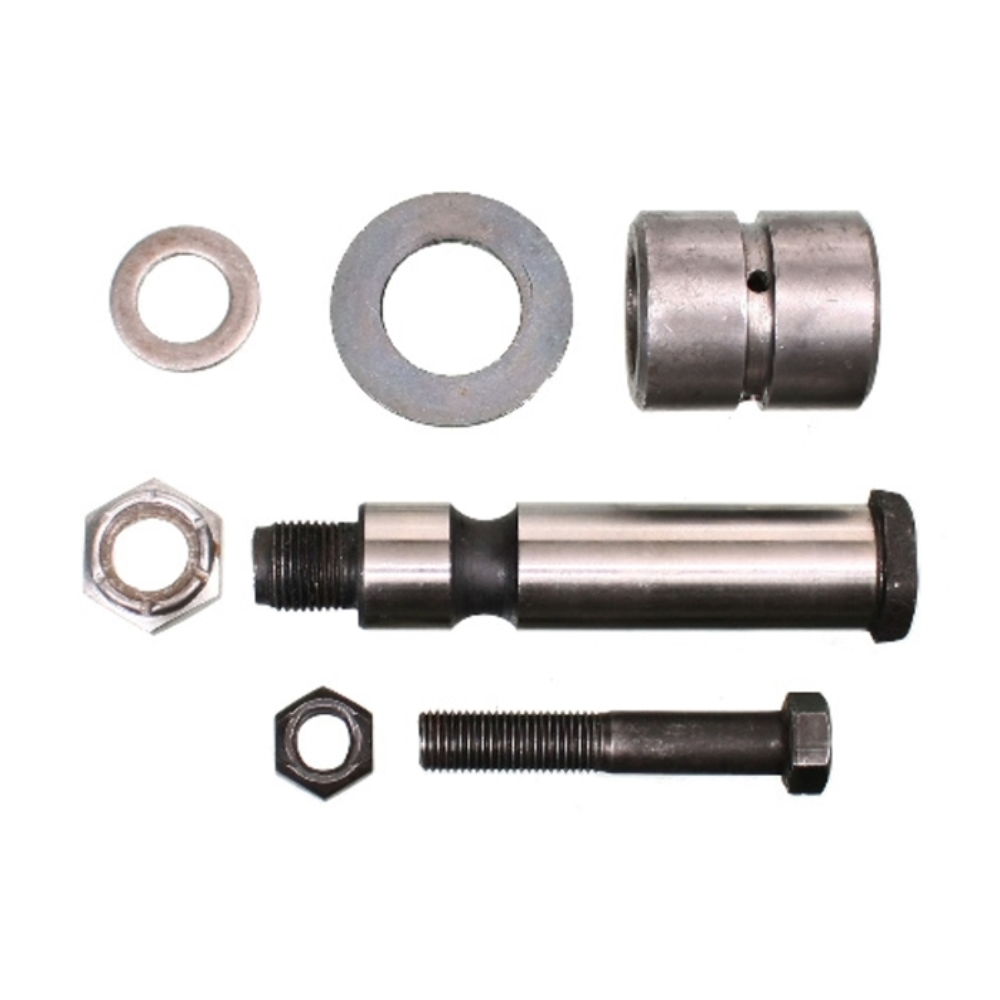

Package Content: 2 Bolts, 1 Bushing, 2 Washers, 2 Lock Nuts
- Part Number:
- 20172
- Manufacturer Part Number:
- 20172
- Quantity per Car:
- 1
- Number of Pieces:
- 1
- yousave:
- 5.441111111
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
