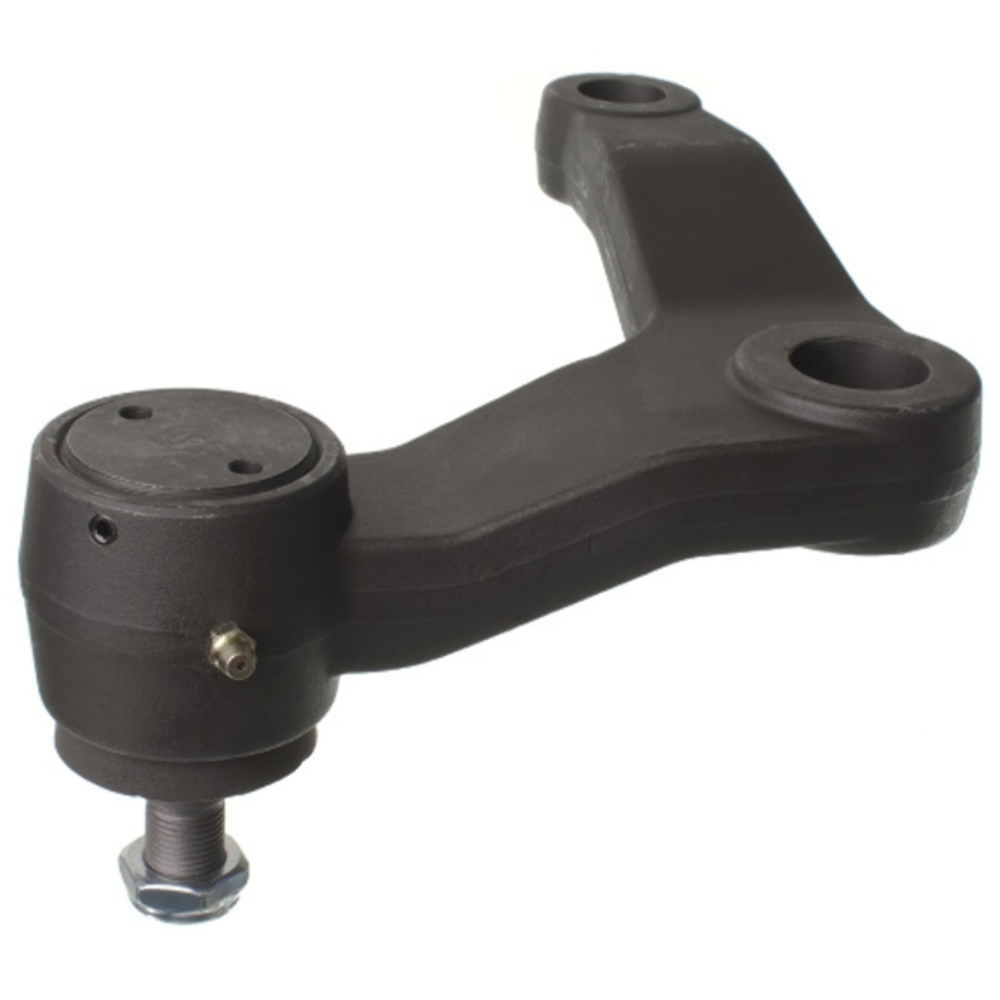

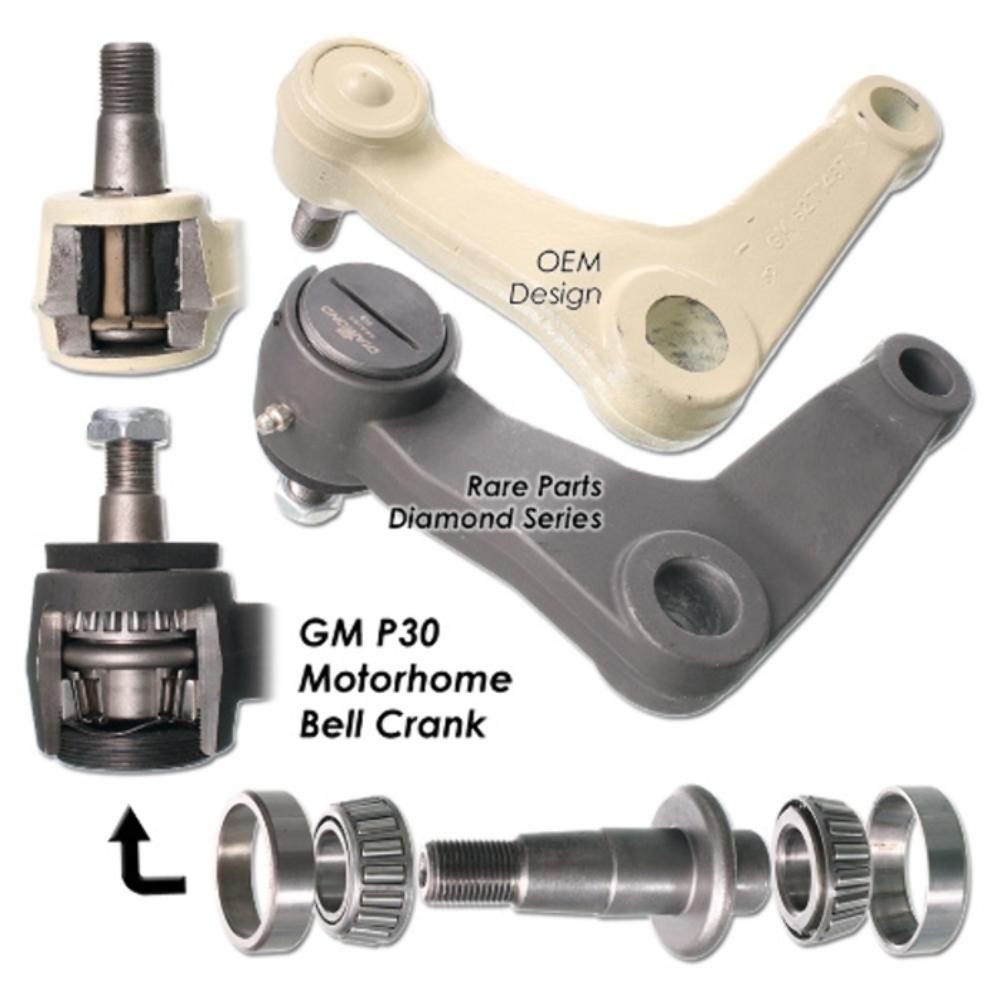

Note: P30 & P32 MOTOR HOMES~ Left~ W/ 16,000# Axle; .722 Small Stud Diameter~ This is a Rare Parts Inc. Diamond Series Part.
Position: Front
Hole Quantity: 2
Hole #1 Pivot Hole: 0.96
Hole #2: 0.74
Ctr. To Ctr. Holes: 5.4
Ctr. To Ctr. Pivot Hole to Ball: 5.4
Stud Dia. Small Taper: 0.722
Overall Dimensions: 7.625
Mounting Hardware Included: Yes
Bell Crank Angle (Degrees): -

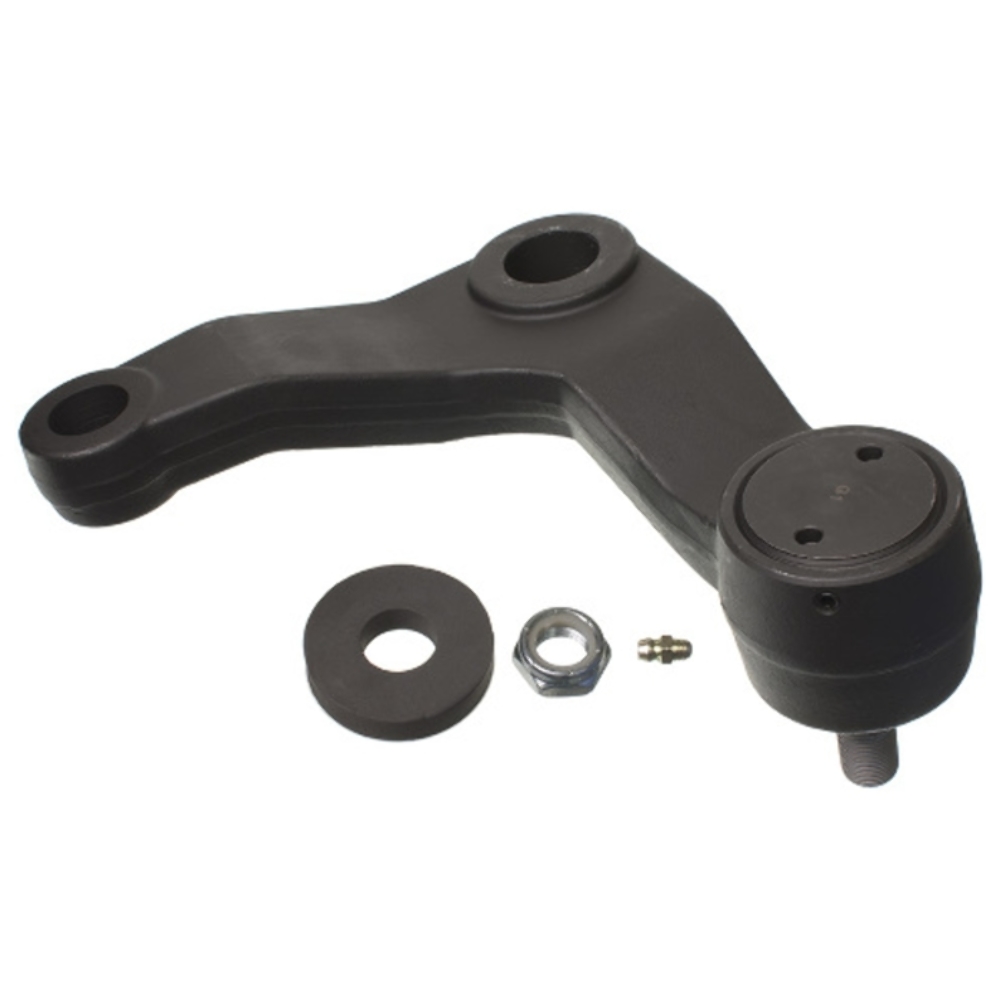

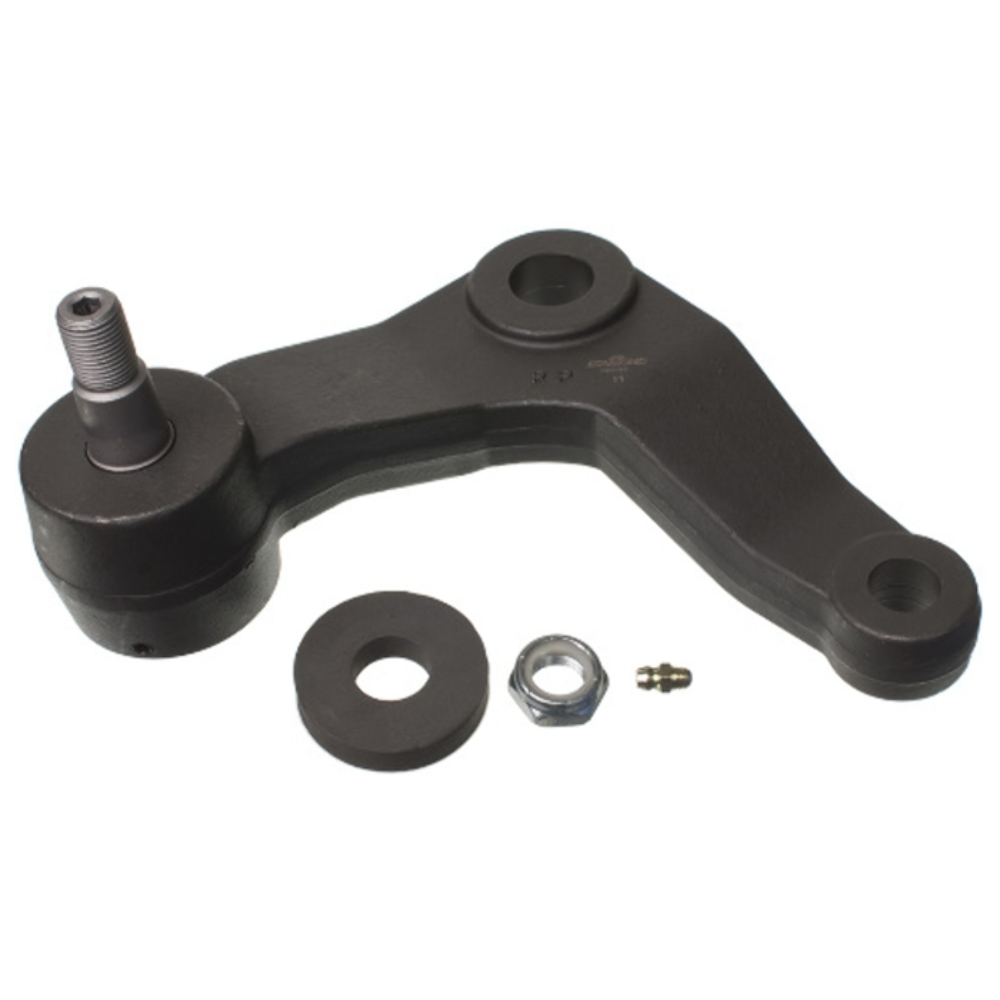

Package Content: 1 Bell Crank, 1 Dust Seal, 1 Lock Nut, 1 Grease Fitting
- Part Number:
- 20843
- Manufacturer Part Number:
- 20843
- Quantity per Car:
- 1
- Specific Placement:
- Front
- Number of Pieces:
- 1
- yousave:
- 44.33
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
