Note: P30 & P32 MOTOR HOMES~ Right~ W/ 14,000# Axle; .662 Small Stud Diameter; Motor Home~ This is a Rare Parts Inc. Diamond Series Part.
Position: Front
Hole Quantity: 2
Hole #1 Pivot Hole: 0.953
Hole #2: 0.54
Ctr. To Ctr. Holes: 5.688
Ctr. To Ctr. Pivot Hole to Ball: 5.5
Stud Dia. Small Taper: TBD
Overall Dimensions: 6.313
Mounting Hardware Included: Yes
Bell Crank Angle (Degrees): 69.4

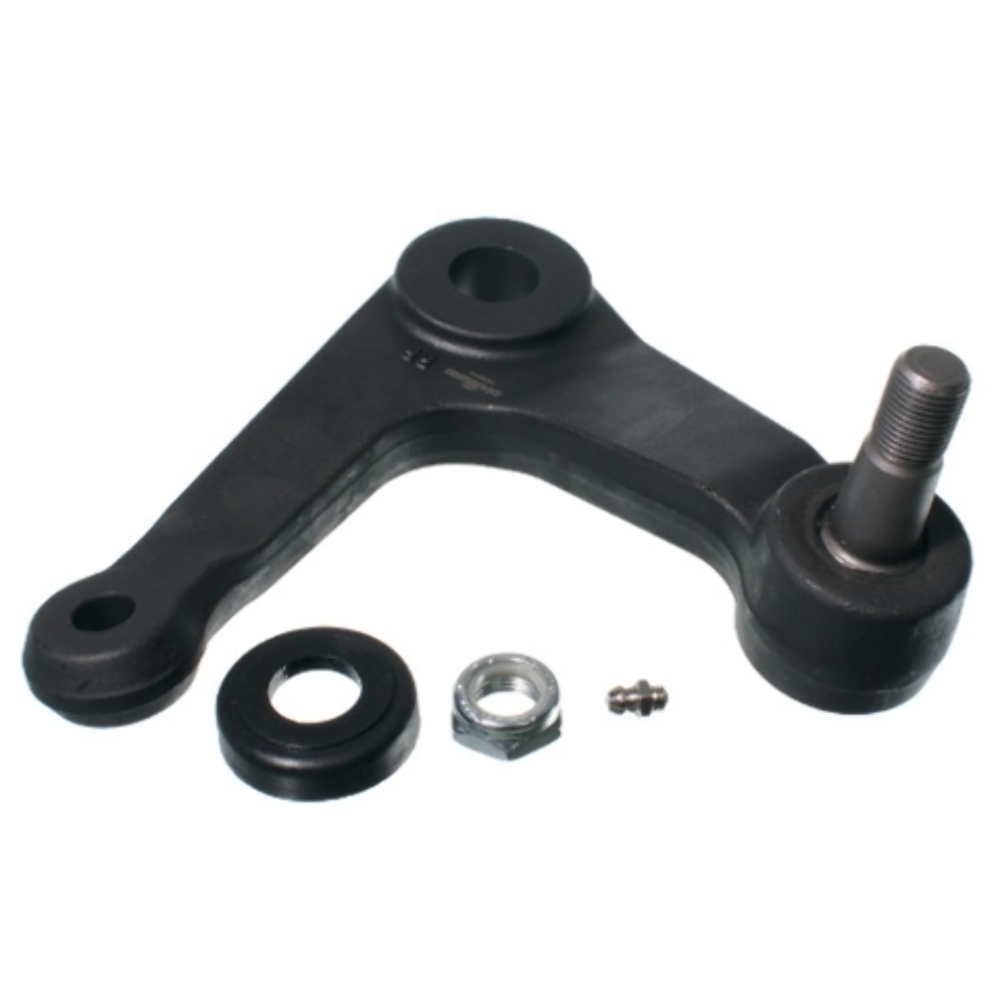

Package Content: 1 Bell Crank, 1 Dust Boot, 1 Lock Nut, 1 Grease Fitting
- Part Number:
- 20988
- Manufacturer Part Number:
- 20988
- Quantity per Car:
- 1
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
