Note: Repair~ Measure the small dia. of the Ctr Link stud that attaches to the Pitman Arm. Saginaw Design = .587"
Drive Type: RWD
Steering System: Manual
Cup Dia.: 0.989
Cup Length: 0.471
Spring 1 Length: 1.77
Spring 2 Length: -
Plunger Length: 1.68
Plunger 2 Length: -
Cap Threads: 1.0625-18
Cap Length: 1.152
Cap 2 Length: -
Plug Dia.: -
Stud Small Taper: -
Stud Large Taper: -
Stud Length: -
Stud Threads: -
Spacer 1 Length: -
Spacer 2 Length: -

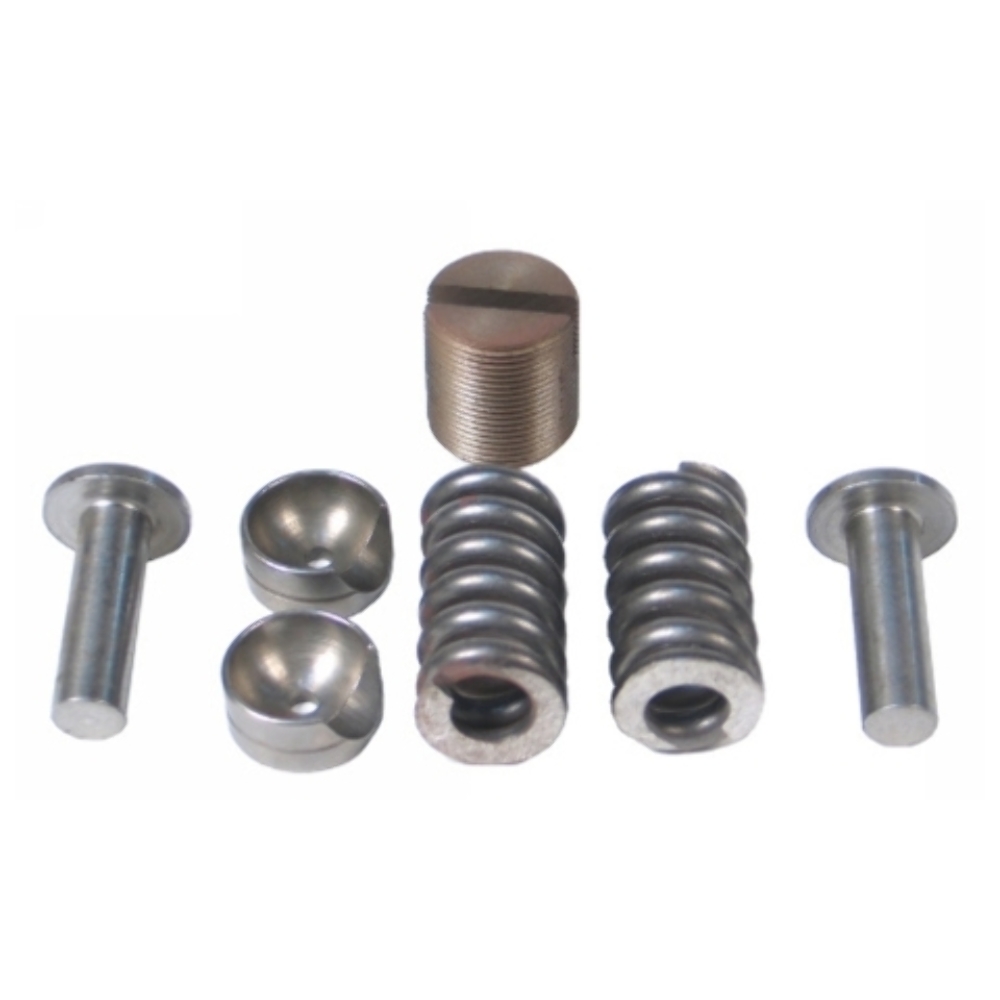

Package Content: 2 Cups, 2 Springs, 2 Plungers, 1 Threaded End Cap
- Part Number:
- 25098
- Manufacturer Part Number:
- 25098
- Wheel Drive:
- RWD
- Note 1:
- Manual Steering
- Number of Pieces:
- 1
- yousave:
- 16.66333333
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
