Steering King Pin for 1961-1981 MG Front 2pc 15100

Notes: Trunnion Assembly/King Pin
Position: Front

King Bolt Type: Straight w/ Support
Pin #1 Length: 9.5
Pin Dia. 1 Step: 0.904
Pin Dia. 2 Step: 0.806
Pin Dia. 3 Step: 0.781
Pin Dia. 4 Step: 0.687
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 1.725
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.732
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.047 x 1.373
Bushing #2 Material: Brass
Bushing #2 O.D. & Overall Length: 0.913 x 1.497
Bearing #1 Type: -
Bearing #1 O.D. & Thickness: -
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

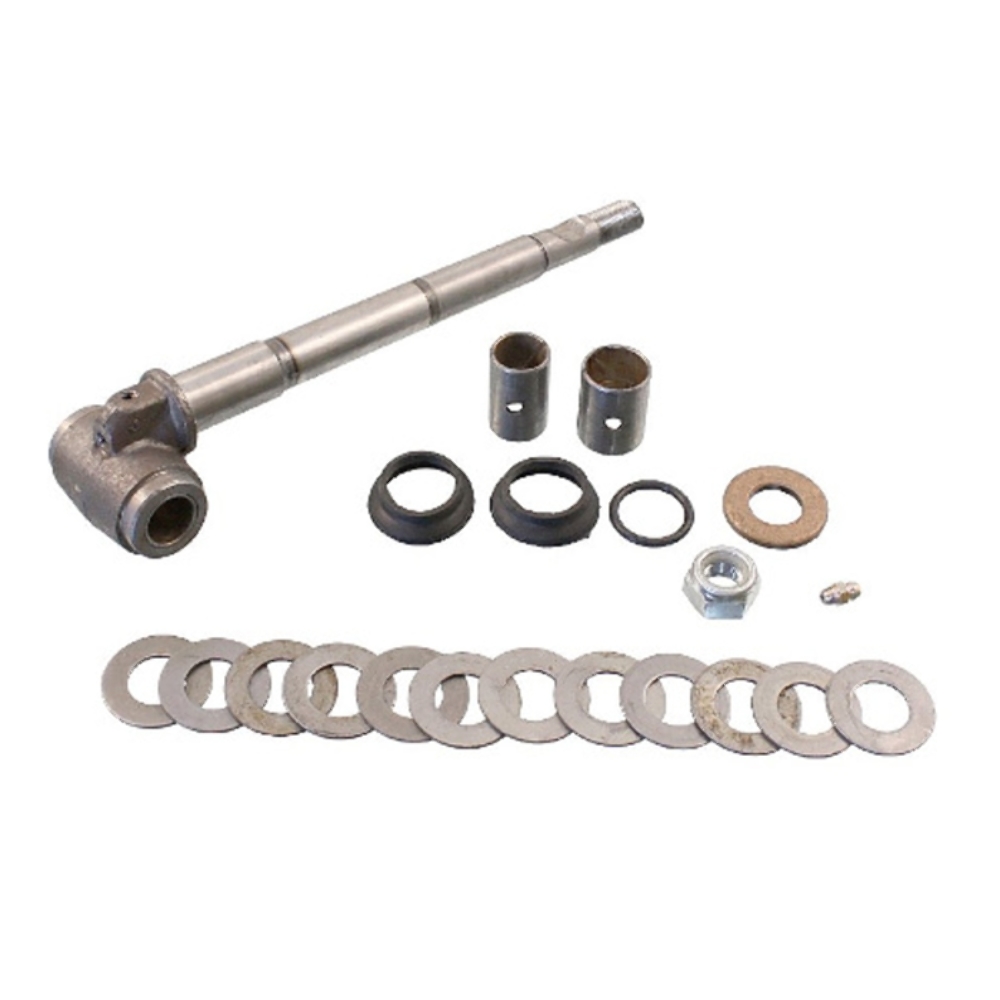

Package Contents: 1 Pin, 2 Bushings, 1 Brass Washer, 12 Steel Washers, 2 Grease Seals, 1 O Ring, 1 Lock Nut, 1 Grease Fitting
: 15100

---

Specifications

Part Number: 15100
Number of Pieces: 1
Specific Placement: Front
Length: End of Pin To Center of Keyway: 1.725, -, -
Note 1: Trunnion Assembly/King Pin
King Bolt Type: Straight w/ Support
Pin #1 Length: 9.5
Pin Dia. 1 Step: 0.904
Pin Dia. 2 Step: 0.806
Pin Dia. 3 Step: 0.781
Pin Dia. 4 Step: 0.687
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 1.725
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.732
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.047 x 1.373
Bushing #2 Material: Brass
Bushing #2 O.D. & Overall Length: 0.913 x 1.497
Bearing #1 Type: -
Bearing #1 O.D. & Thickness: -
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -
Package Contents: 1 Pin, 2 Bushings, 1 Brass Washer, 12 Steel Washers, 2 Grease Seals, 1 O Ring, 1 Lock Nut, 1 Grease Fitting
: 15100
Note: Trunnion Assembly/King Pin
Position: Front

---

Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride

•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the to make the job easier

Be sure to double check the fitment section and ensure this part fits your vehicle.

About Collectors Auto Supply

This auto part is covered by Collectors Auto Supply's three-dimensional promise — you'll get the right part the first time, you can talk to us, and with over 25 years in business and 100,000+ customer transactions, you can trust us to be the right choice to fuel your passion.

Collectors Auto Supply offers premium replacement auto parts and the experience to get you the right parts for your vehicle. Our group of experts has a combined knowledge of more than a half-century specializing in classic restoration components. Together, we’ve been making old rides new again for more than 25 years.

The customer service from Collectors Auto Supply is unparalleled, and our products are top-notch. If you’ve been searching for a hard-to-find replacement component, look no further. We have countless suppliers throughout the country, which means, if the part you need is out there, we’ll find it.

This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
MG MGA
MG MGB
MG Midget
