Steering King Pin Set for 1934-1939 Chrysler / DeSoto Front 2pc 30125

Note: With 8 Cyl. Engine, .937" x 6-5/16" Pin: W/ Single Keyway
Position: Front

King Bolt Type: Straight
Pin #1 Length: 6.289
Pin Dia. 1 Step: 0.932
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 3.11
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.752
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.050 x 1.550
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bearing #1 Type: Thrust Roller Bearing
Bearing #1 O.D. & Thickness: 1.740 x 0.624
Bearing #2 Type: Needle Bearing
Bearing #2 O.D. & Thickness: 1.180 x 0.992
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

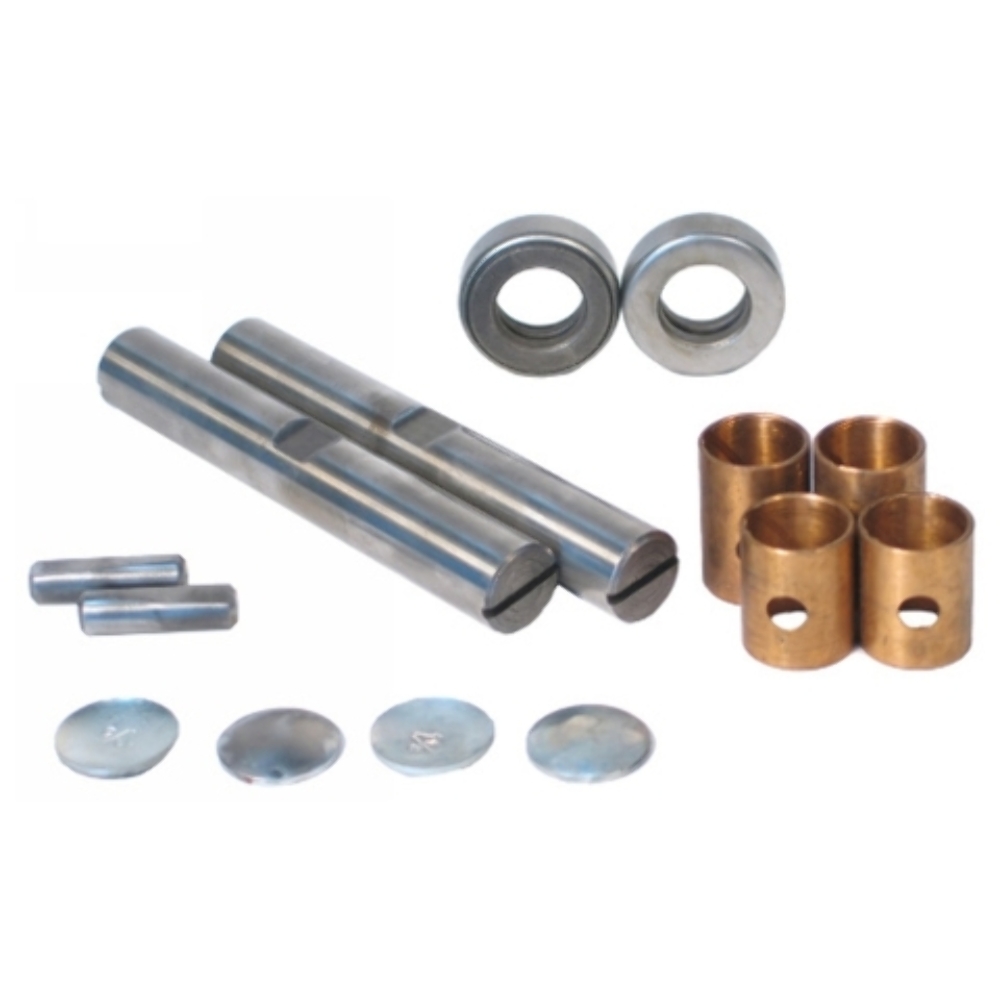

Package Contents: 2 Pins, 2 Bushings, 2 Ball Bearings, 2 Needle Bearings, 4 Welch Plugs, 2 Lock Pins, Asst
: 30125

Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin set. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This set is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride

•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the set to make the job easier

Be sure to double check the fitment section and ensure this part fits your vehicle.
