Steering King Pin Set for 1939-1940 Studebaker Front 2pc 30154

Note: From Serial #18290
Position: Front

King Bolt Type: Straight w/ Support
Pin #1 Length: 4.641
Pin Dia. 1 Step: 1.122
Pin Dia. 2 Step: 0.748
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 1.283
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.805
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.252 x 0.750
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bearing #1 Type: Thrust Ball Bearing
Bearing #1 O.D. & Thickness: 2.178 x 0.625
Bearing #2 Type: Needle Bearing
Bearing #2 O.D. & Thickness: 1.375 x 0.998
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

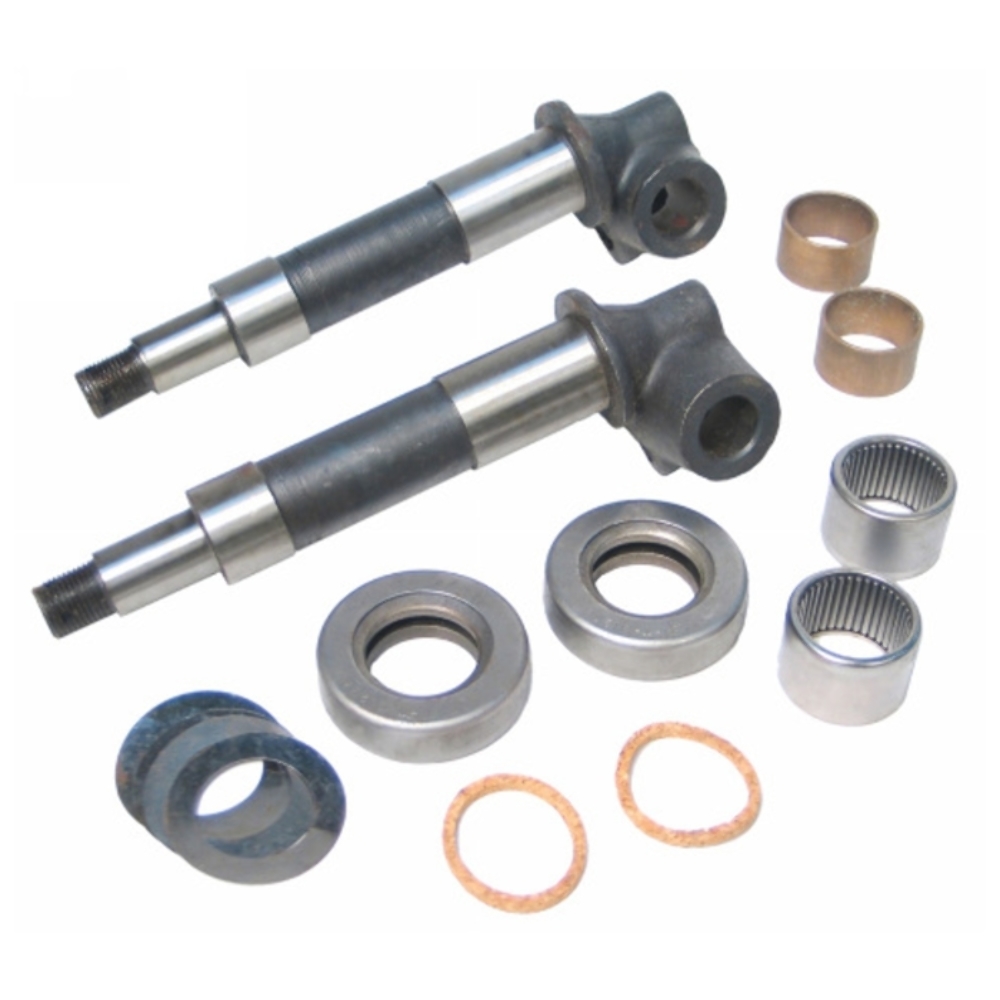

Package Contents: 2 Pins, 2 Bushings, 4 Bearings, 2 Cork Gaskets, Asst Shims
: 30154

Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin set. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This set is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride

•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the set to make the job easier

Be sure to double check the fitment section and ensure this part fits your vehicle.
