Note: Standard; Includes Ball Bearing & Metal Bushing, Includes Ball Bearing; W/ Metal Bushings, 3/4 TON~ Standard; Includes Ball Bearing & Metal Bushing, Standard; Incl. Ball Bearing & Metal Bushing; Except J Series, Parcel Delivery, 1 Ton~ Includes Ball Bearing; W/ Metal Bushings
Position: Front
Drive Type: RWD
King Bolt Type: Straight w/ Shoulder
Pin #1 Length: 5.75
Pin Dia. 1 Step: 0.811
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 3.069
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.337
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 0.939 x 1.299
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bearing #1 Type: Thrust Roller Bearing
Bearing #1 O.D. & Thickness: 1.660 x 0.534
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

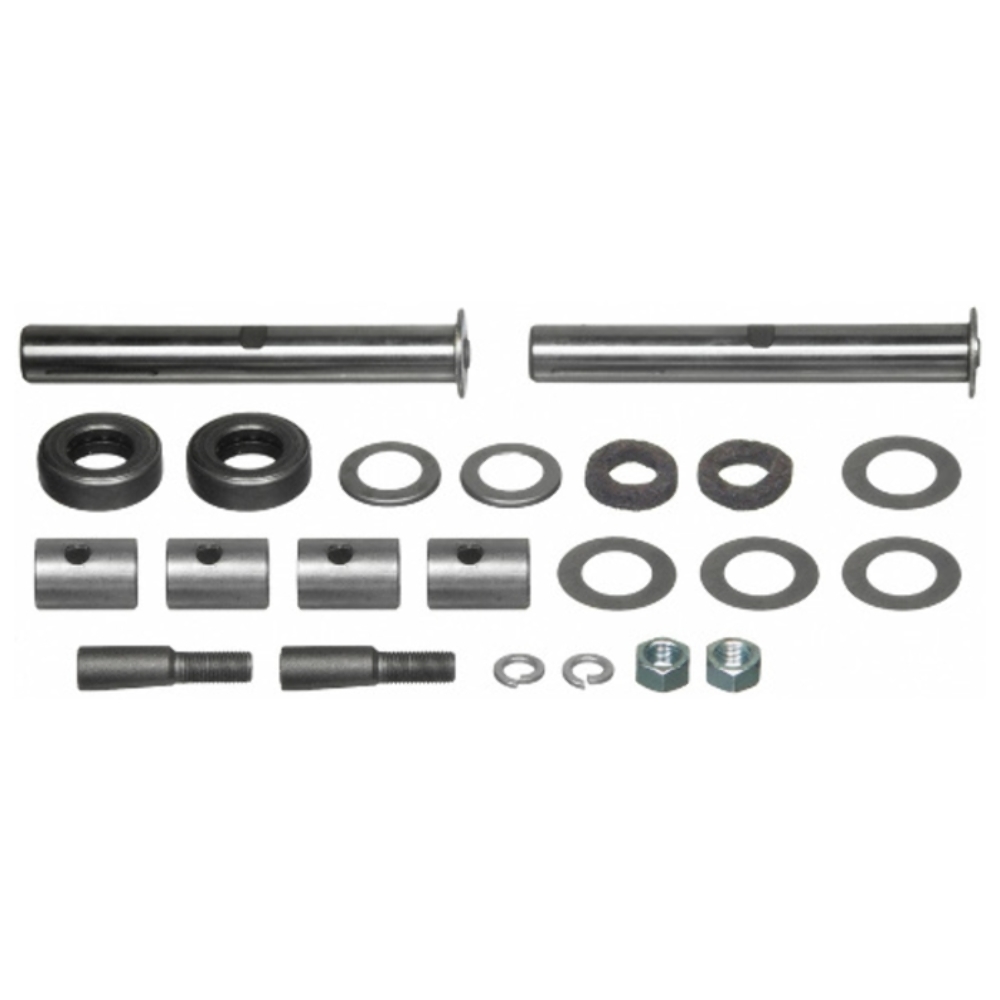

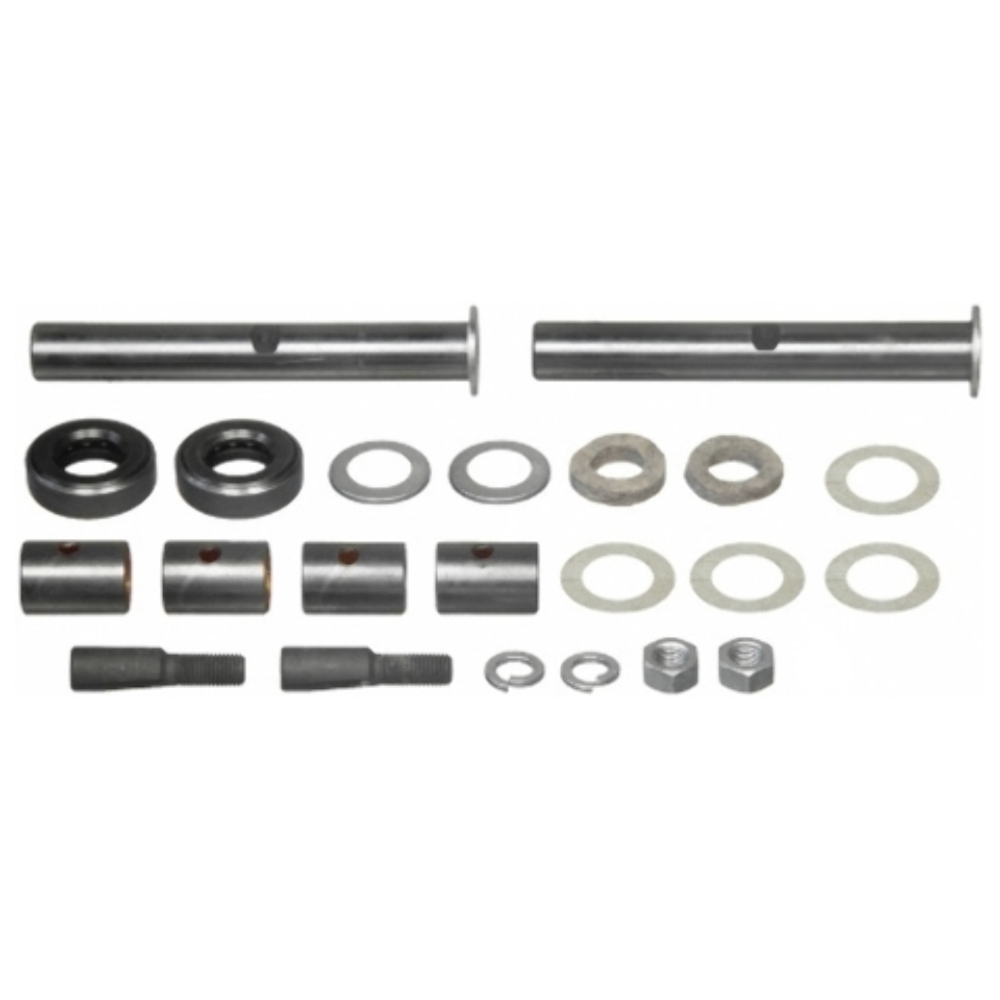

Package Contents: 2 Pins, 4 Bushings, 2 Bearings, 2 Threaded Lock Pins, 2 Nuts, 2 Felt Washers, 2 Retaining Washers, Asst Shims
: 30221
Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin set. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This set is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride
•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the set to make the job easier
Be sure to double check the fitment section and ensure this part fits your vehicle.
- Part Number:
- 30221
- Manufacturer Part Number:
- 30221
- Quantity per Car:
- 1
- Base Material:
- Bushing 1: Brass*2: -
- Specific Placement:
- Front
- Number of Pieces:
- 2
- yousave:
- 14.88555556
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
