Steering King Pin Set for 1947-1963 Chevrolet / GMC Front 2pc 30215

Note: Includes Ball Bearing; W/ Metal Bushings; 1.109" x 6.343"; 4000Lb. Axle, Includes Washer Bearing & Metal Bushing; 1.109" x 6.343", Standard; 1.109 X 6-3/8" Log Pin; W/ Thrust Washers, Standard; W/ Grooved Pins; W/ HD Axle; 1.109 X 6-3/8" Long Pin, Standard; Pin Dia. 1.109" Pin Length 6.375"; W/ Thrust Washers, Includes Washer Bearing & Metal Bushing; 1.109" x 6.343"; Standard Axle, Standard; Includes Ball Bearing & Metal Bushing; 1.109" x 6.343', 3/4 TON~ Includes Washer Bearing & Metal Bushing; 1.109" x 6.343"~ Forward Control; Except 102" Wheelbase, 3/4 TON~ Includes Washer Bearing & Metal Bushing; 1.109 x 6.343"~ Forward Control; Except 102" Wheelbase, 3/4 TON~ Includes Thrust Washers Bearing & Metal Bushing; 1.109" x 6.343" Forward Control; Except 102" WB., Includes Ball Bearing; W/ Metal Bushings; Except Independent Frt. Susp.; 1.109" x 6.343", 1 TON PICKUP~ Incl. Washer Bearing & Metal Bushing; 1.109" x 6.343"~ Forward Control; Except 102" Wheelbase, 1/2 TON~ Includes Washer Bearing & Metal Bushing; 1.109" x 6.343"; 4000Lb. Axle, P Van 3/4 Ton~ Standard; Includes Ball Bearing & Metal Bushing; 1.109" x 6.343'; Except Independent Frt. Susp., 1 Ton Forward Control Van~ Standard; W/ Thrust Washers, Standard; 1.109 Diameter Pin; W/ Thrust Washers
Position: Front
Drive Type: RWD

King Bolt Type: Straight
Pin #1 Length: 6.375
Pin Dia. 1 Step: 1.108
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 3.178
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.359
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.239 x 1.362
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bearing #1 Type: Ball
Bearing #1 O.D. & Thickness: 2.190 x 0.626
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

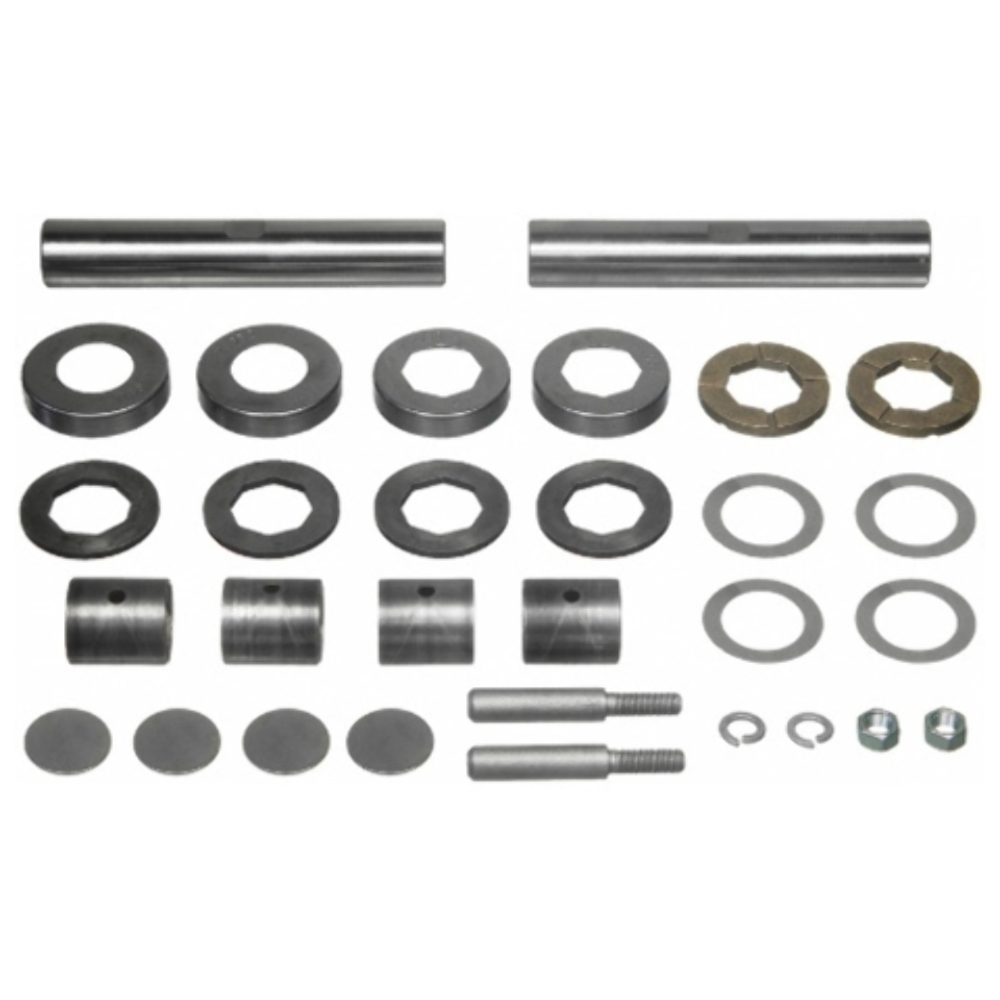

Package Contents: 2 Pins, 4 Bushings, 2 Bearings, 2 Lock Pins, 2 Lock Washers, 2 Nuts, 4 Welch Plugs, Asst Shims
: 30215

Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin set. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This set is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride

•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the set to make the job easier

Be sure to double check the fitment section and ensure this part fits your vehicle.
