Steering King Pin Set for 1947-1963 Chevrolet / GMC Front 2pc 30302

Note: .010 Oversize Pin; 1.109 X 6-3/8" Log Pin; W/ Thrust Washers, .010 O/S Pin; W/ Grooved Pins; W/ HD Axle; 1.109 X 6-3/8" Long Pin, .010 Oversize; Pin Dia. 1.119" Pin Length 6.375; W/ Thrust Washers, .010 Oversize Pin; W/ Thrust Washers, 3/4 TON~ .010 Oversize Pin; Contains Thrust Washers, 1 TON PICKUP~ .010 Oversize Pin; Includes Thrust Washers, P Van 3/4 Ton~ .010 Oversize Pin; Metal Bushings, 1 Ton Forward Control Van~ .010 Oversize; W/ Thrust Washers, .010 Oversize Pin; 1.109 Diameter Pin; W/ Thrust Washers
Position: Front
Drive Type: RWD

King Bolt Type: Straight
Pin #1 Length: 6.345
Pin Dia. 1 Step: 1.118
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 3.179
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.34
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Bronze
Bushing #1 O.D. & Overall Length: 1.235 x 1.366
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bearing #1 Type: Thrust Washer
Bearing #1 O.D. & Thickness: 2.242 x 0.623
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

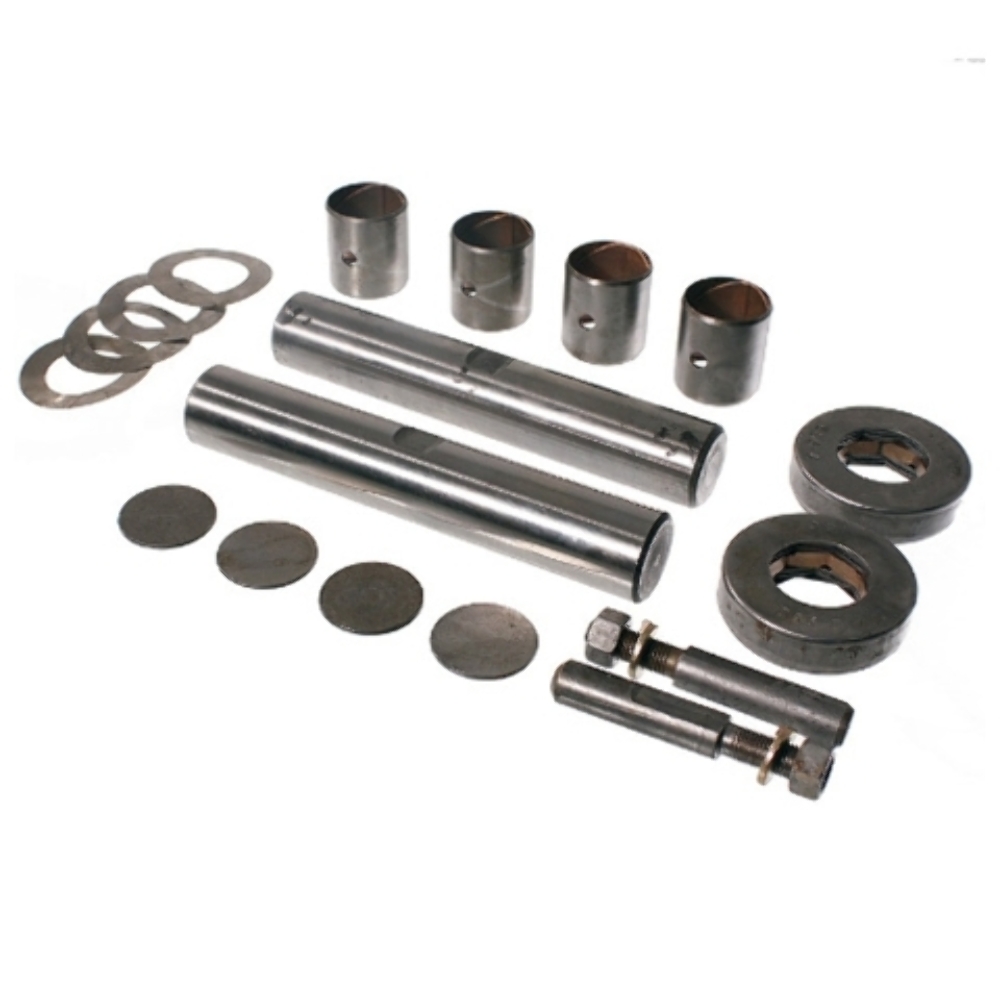

Package Contents: 2 King Pins, 4 Bushings, 2 Bearings, 4 Welch Plugs, 2 Threaded Lock Pins, 2 Lock Washers, 2 Nuts, Asst Shims
: 30302

Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin set. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This set is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride

•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the set to make the job easier

Be sure to double check the fitment section and ensure this part fits your vehicle.
