Steering King Pin Set for 1951-1959 GMC Front 2pc 30349

Note: Standard; Pin Dia. 1.029" Pin Length 8.375"; Tapered Pin; W/ HD Axle
Position: Front

King Bolt Type: Tapered
Pin #1 Length: 8.375
Pin Dia. 1 Step: 1.245
Pin Dia. 2 Step: 1.028
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: -
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: -
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Bronze
Bushing #1 O.D. & Overall Length: 1.383 x 1.757
Bushing #2 Material: Steel
Bushing #2 O.D. & Overall Length: 1.245 x 1.920
Bearing #1 Type: Ball
Bearing #1 O.D. & Thickness: 2.190 x 0.627
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

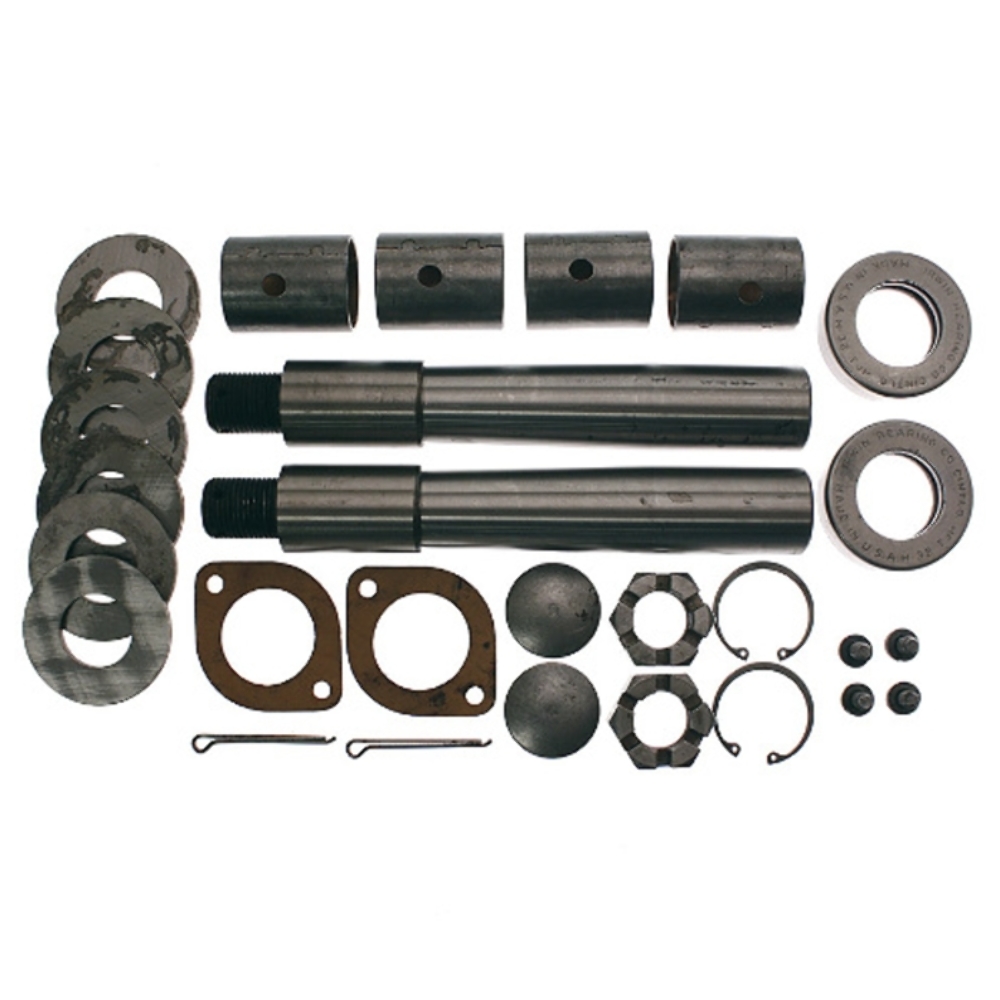

Package Contents: 2 Pins, 6 Bushings, 2 Bearings, 2 Welsch Plugs, 6 Spacers, 2 Castle Nuts, 2 Cotter Pins, 4 Bolts, 4 Lock Washers, 2 Gaskets, 2 Snap Rings, Asst Shims
: 30349

Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin set. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This set is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride

•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the set to make the job easier

Be sure to double check the fitment section and ensure this part fits your vehicle.
