Steering King Pin Set for 1953-1956 Ford Front 2pc 30314

Note: Standard
Position: Front
Drive Type: RWD

King Bolt Type: Straight w /Shoulder
Pin #1 Length: 5.976
Pin Dia. 1 Step: 0.857
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 2.855
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.162
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 0.981 x 1.302
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bearing #1 Type: Ball
Bearing #1 O.D. & Thickness: 1.662 x 0.525
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

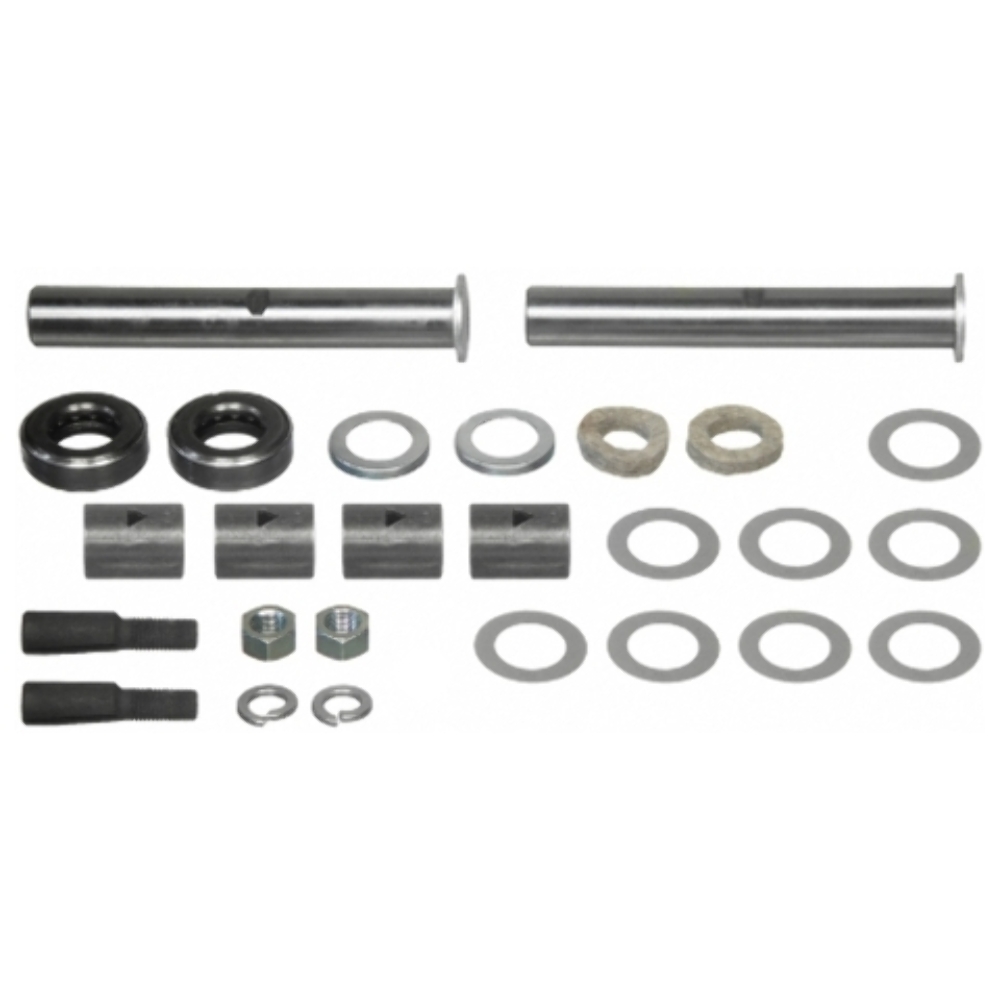

Package Contents: 2 Pins, 4 Bushings, 2 Bearings, 2 Lock Pins, 2 Lock Washers, 2 Nuts, 2 Retaining Washers, 2 Felt Rings, Asst Shims
: 30314

Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin set. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This set is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride

•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the set to make the job easier

Be sure to double check the fitment section and ensure this part fits your vehicle.
