Specifications
PartNo: 30122
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 5.286
Pin Dia. 1 Step: 0.802
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 1.183
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.441
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 0.929 x 1.121
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust Roller
Bearing #1 O.D. & Thickness: 1.662 x 0.532
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

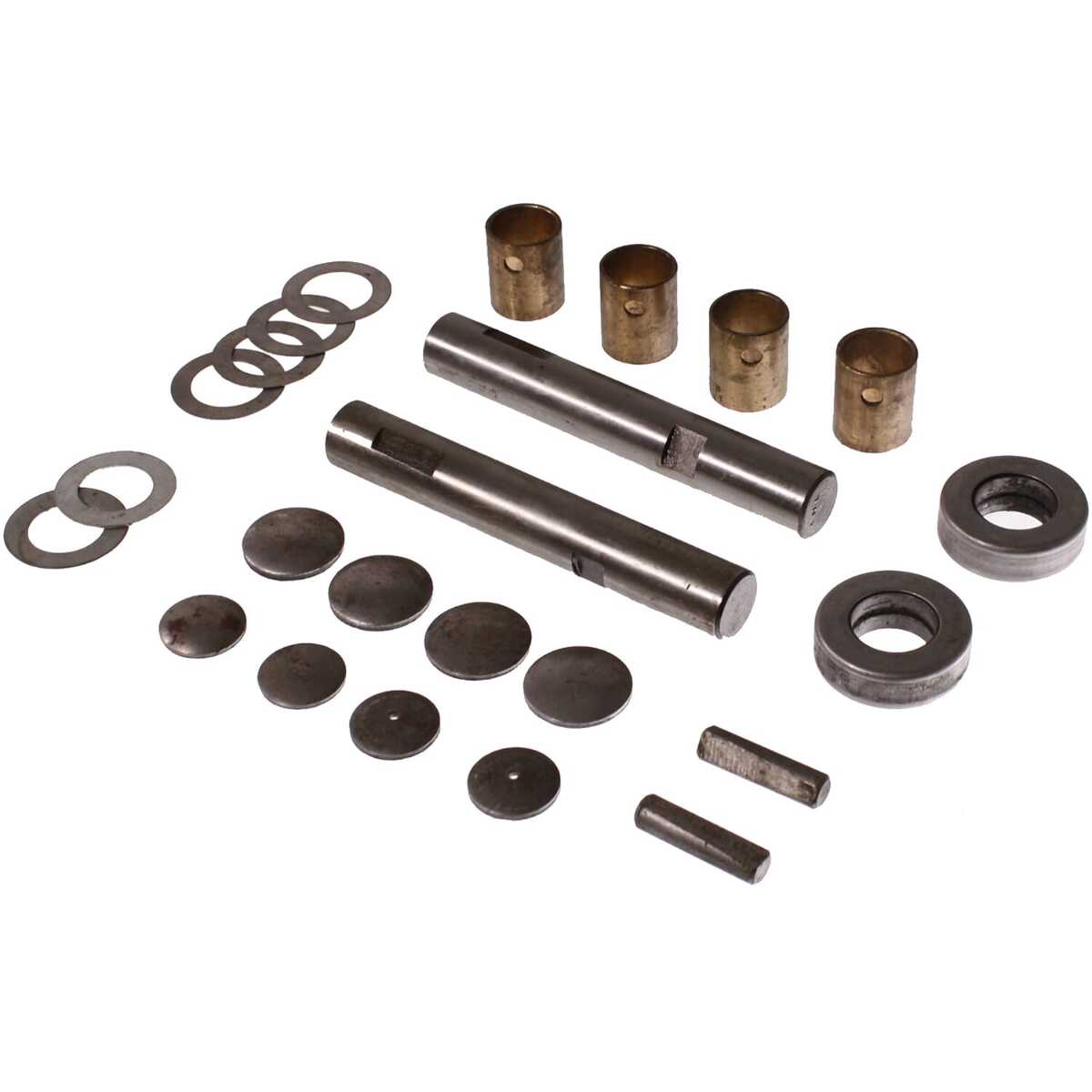

Package Contents: 2 King Pins, 2 Bearings, 4 Bushings, 4 Caps, 4 Welch Plugs, 2 Lock Pins, Asst Shims.
- Part Number:
- 30122
- Manufacturer Part Number:
- 30122
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
