Specifications
PartNo: 30185
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 5.086
Pin Dia. 1 Step: 0.803
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: 5.086
Pin #2 Dia.: 0.803
End of Pin to Center of Keyway 1: 1.63
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.43
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 0.929 x 1.122
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Ball
Bearing #1 O.D. & Thickness: 1.665 x 0.527
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

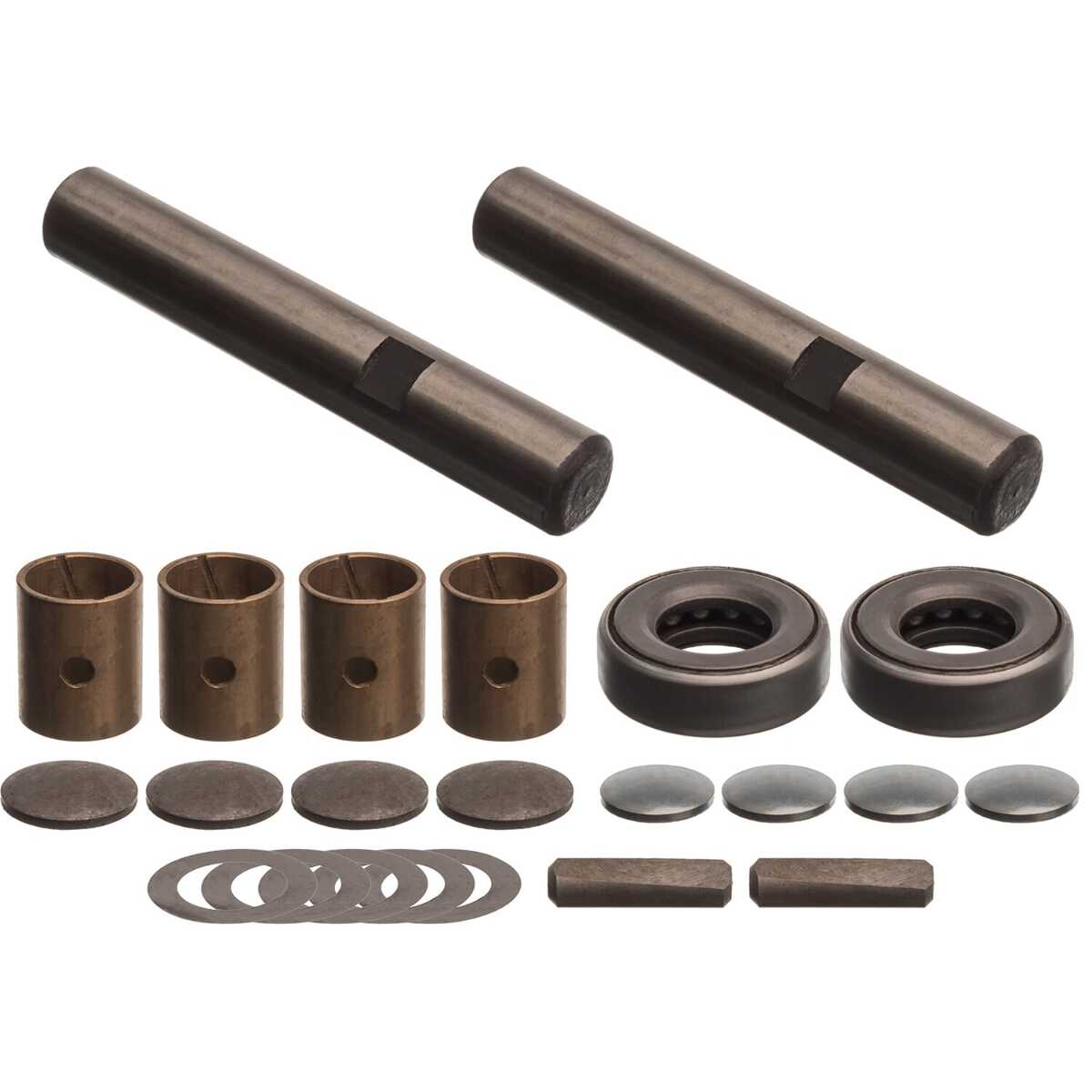

Package Contents: 2 Pins, 4 Bushings, 2 Bearings, 2 Lock Pins, 4 Large Welch Plugs, 4 Small Welch Plugs, Asst Shims
- Part Number:
- 30185
- Manufacturer Part Number:
- 30185
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
