Specifications
PartNo: 30612
Note: 3640, 3640A, 3720, 3820, 3920, 400 & Ambassador Models
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 5.247
Pin Dia. 1 Step: 0.814
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 2.425
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.614
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 0.947 x 1.052
Bushing #2 Material: Brass
Bushing #2 O.D. & Overall Length: 0.946 x 1.067
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust Ball Bearing
Bearing #1 O.D. & Thickness: 1.660 x 0.533
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

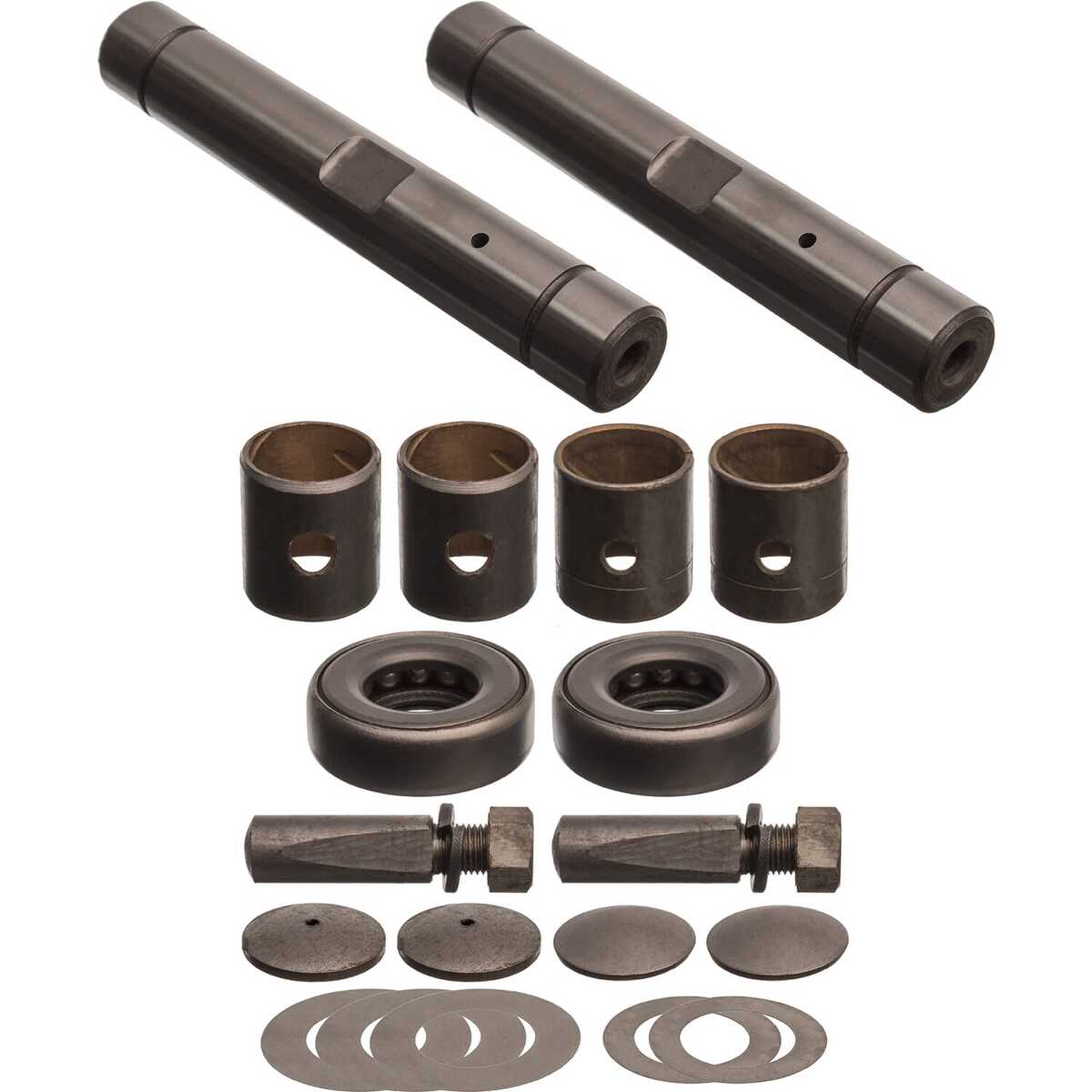

Package Contents: 2 King Pins, 4 Bushings, 2 Bearings, 4 Welch Plugs, 2 Lock Pins, 2 Nuts, 2 Lock Washers, Asst Shims
- Part Number:
- 30612
- Manufacturer Part Number:
- 30612
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
