Steering King Pins for 1938-1939 Domestics 1pc Front 30619

Specifications

PartNo: 30619
Note: 3880, 3980 & Ambassador 8 Models; W/ 0.858 x 5 13/16" Pins
Position: Front
Number of Pieces: 1

King Bolt Type: Straight
Pin #1 Length: 5.822
Pin Dia. 1 Step: 0.858
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: 5.822
Pin #2 Dia.: 0.858
End of Pin to Center of Keyway 1: 2.741
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.622
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 0.983 x 1.185
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Ball
Bearing #1 O.D. & Thickness: 1.714 x 0.613
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

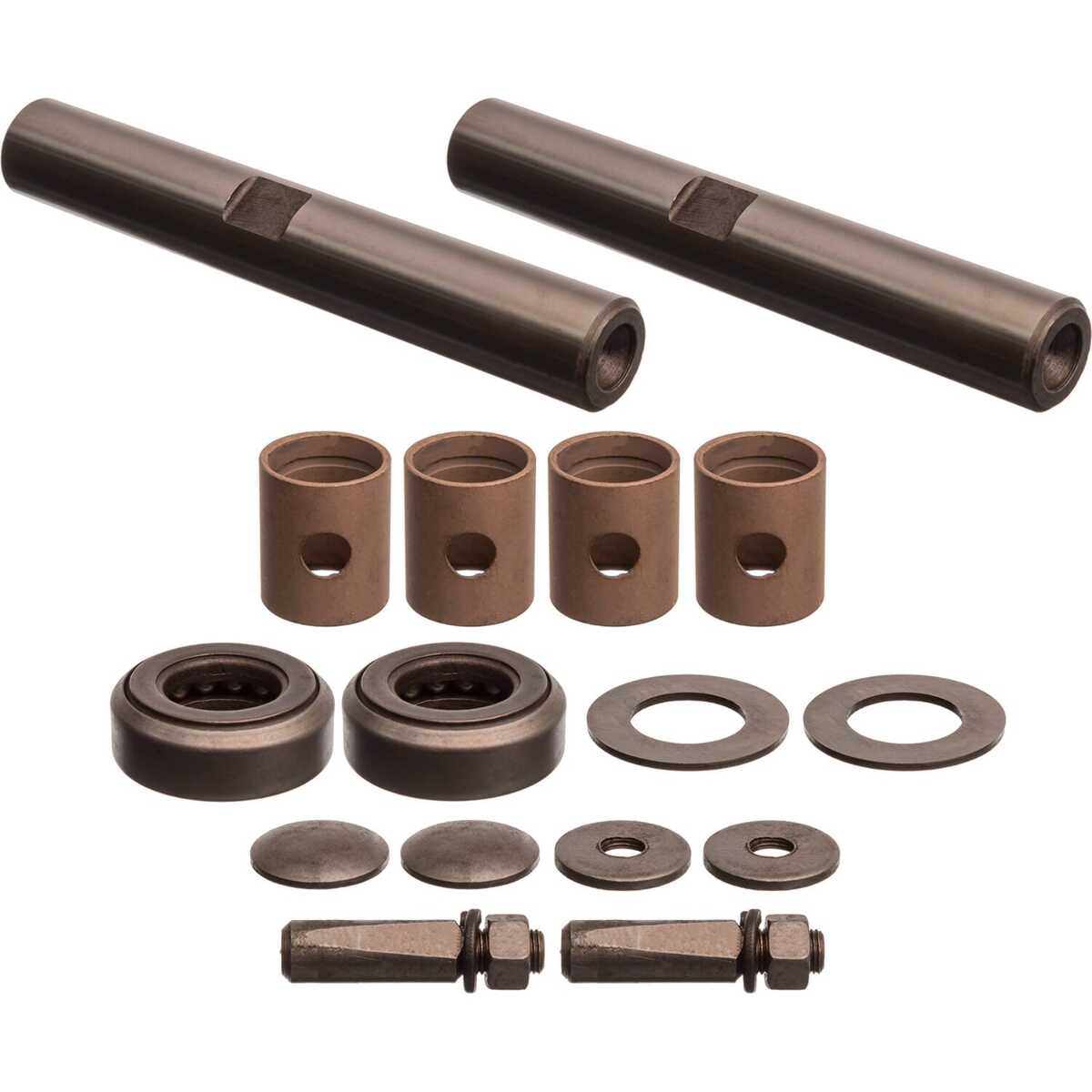

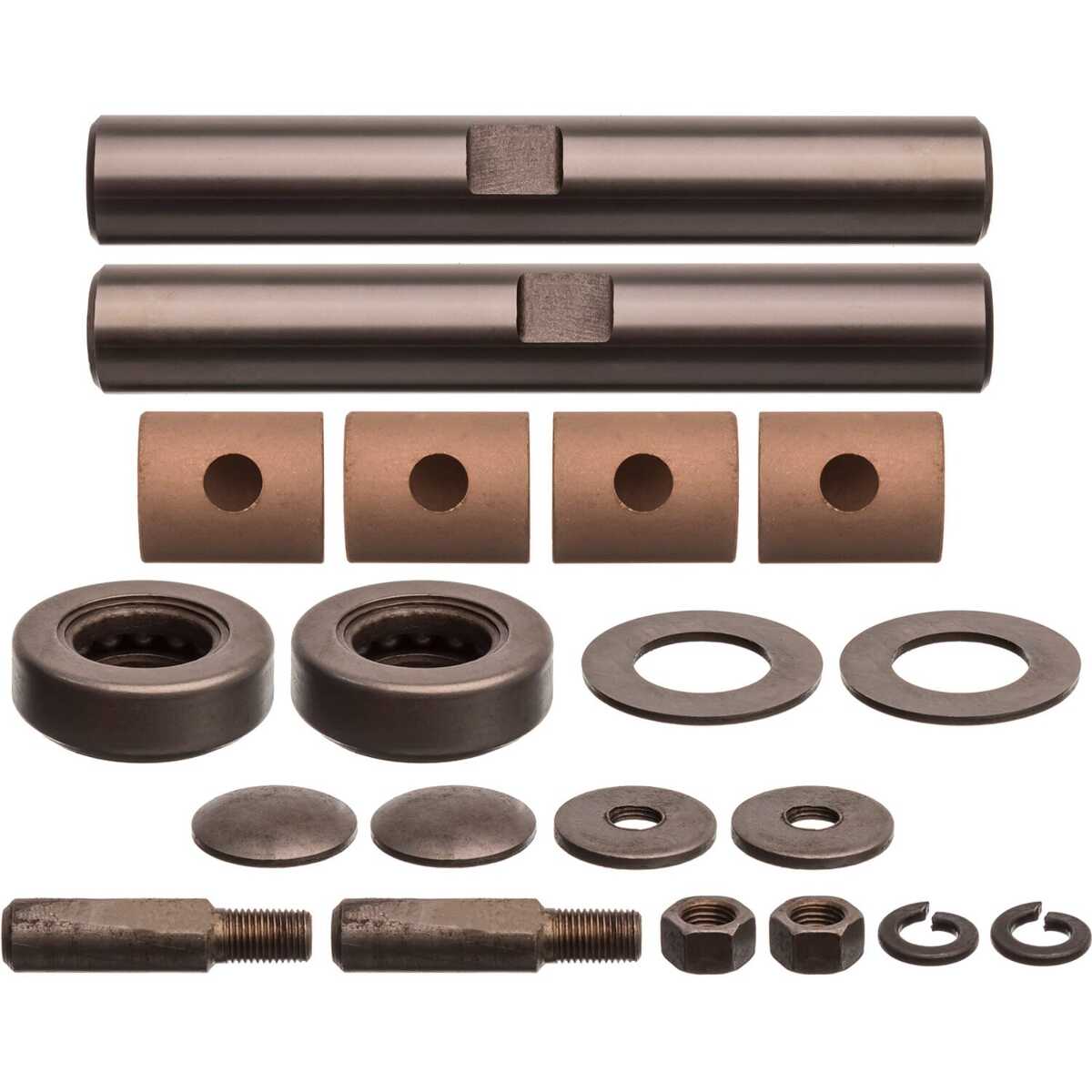

Package Contents: 2 Pins, 4 Bushings, 2 Bearings, 2 Washers, 2 Threaded Washers, 2 Welch Plugs, 2 Lock Pins, 2 Nuts, 2 Lock Washers
