Specifications
PartNo: 30199
Note: TG & TH Models; W/ .998" x 7 1/4" King Pin
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 7.243
Pin Dia. 1 Step: 0.997
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: 7.243
Pin #2 Dia.: 0.997
End of Pin to Center of Keyway 1: 2.32
End of Pin to Center of Keyway 2: 4.39
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.455
Width of Keyway 2: 0.455
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.140 x 1.393
Bushing #2 Material: Brass
Bushing #2 O.D. & Overall Length: 1.140 x 1.495
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Ball
Bearing #1 O.D. & Thickness: 1.995 x .626
Bearing #2 Type: Ball
Bearing #2 O.D. & Thickness: 1.995 x 626
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

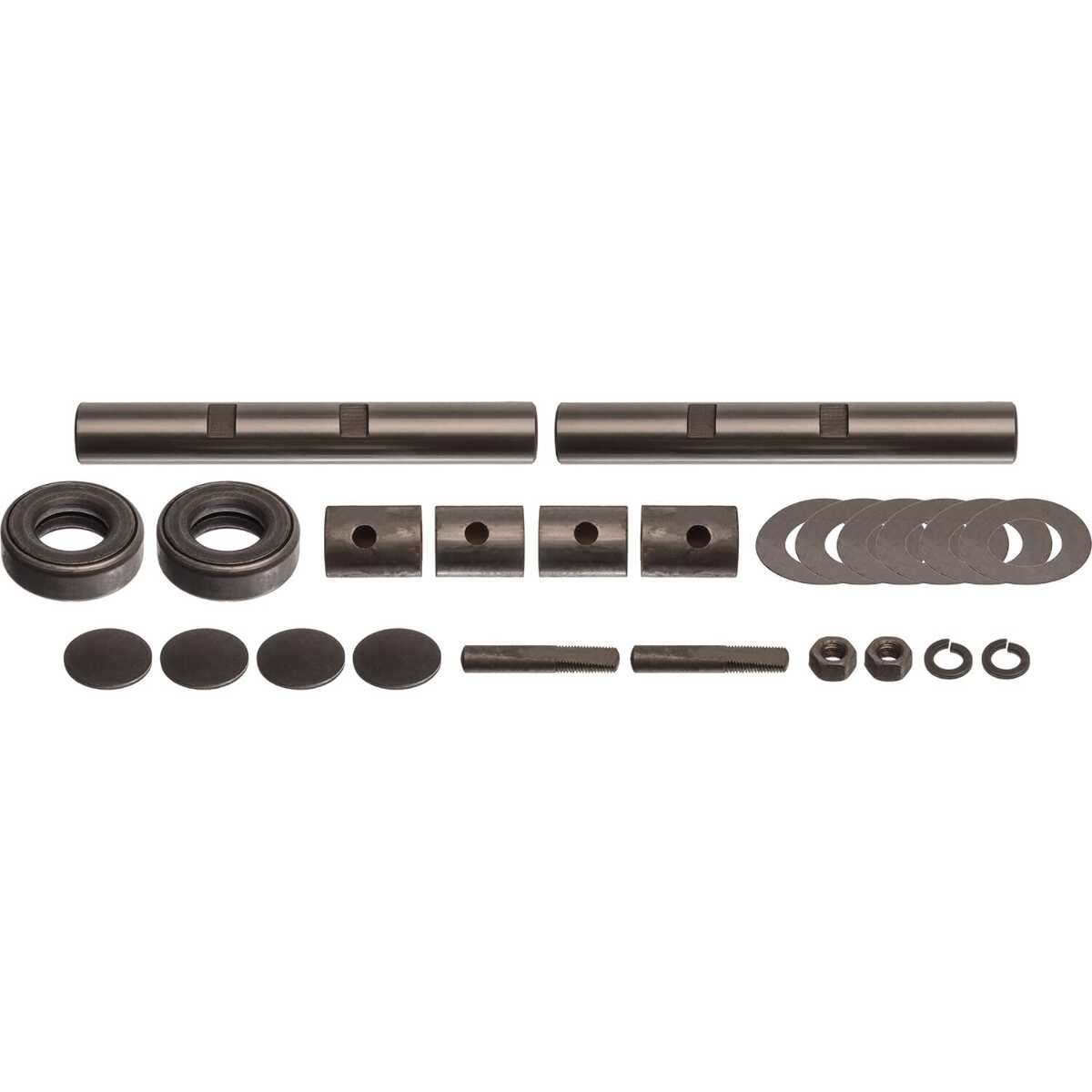

Package Contents: 2 Pins, 4 Bushings, 2 Bearings, 4 Welch Plugs, 2 Threaded Lock Pins, 2 Lock Washers, 2 Nuts, Asst Shims
- Part Number:
- 30199
- Manufacturer Part Number:
- 30199
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
