Steering King Pins for 1941-1942 Domestics 1pc Front 30238

Specifications

PartNo: 30238
Note: This part is R&R only. Part must be sent in to be remanufactured.
Position: Front
Number of Pieces: 1

King Bolt Type: Straight w/ Support
Pin #1 Length: 5.095
Pin Dia. 1 Step: 1.248
Pin Dia. 2 Step: 1.186
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 1.58
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.811
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.310 x 1.240
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust Ball Bearing
Bearing #1 O.D. & Thickness: 2.240 x 0.636
Bearing #2 Type: Needle Bearing
Bearing #2 O.D. & Thickness: 1.500 x 0.993
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

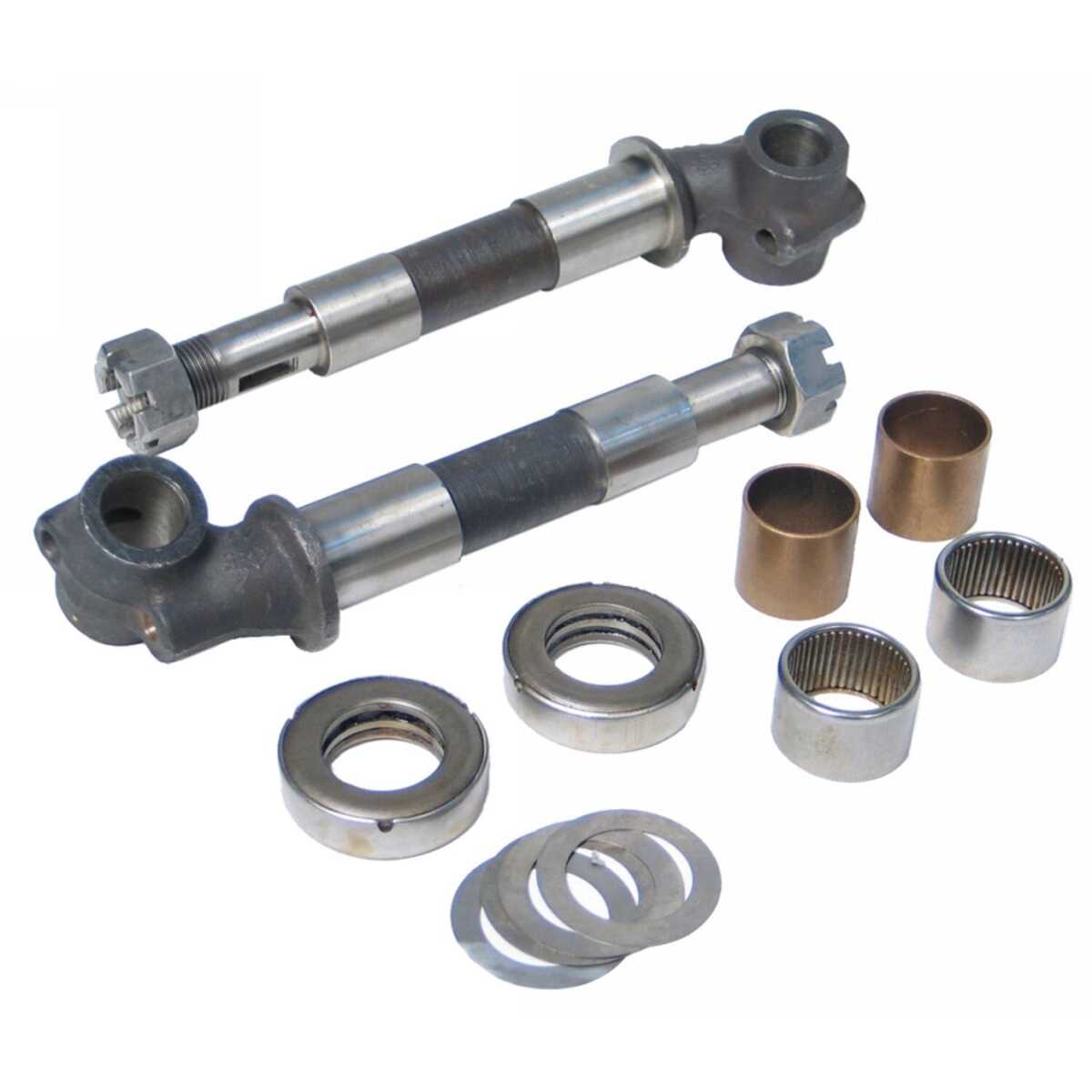

Package Contents: 2 Pins, 2 Bushings, 2 Ball Bearings, 2 Needle Bearings, Asst Shims, 2 Cotter Pins, 2 Seals
