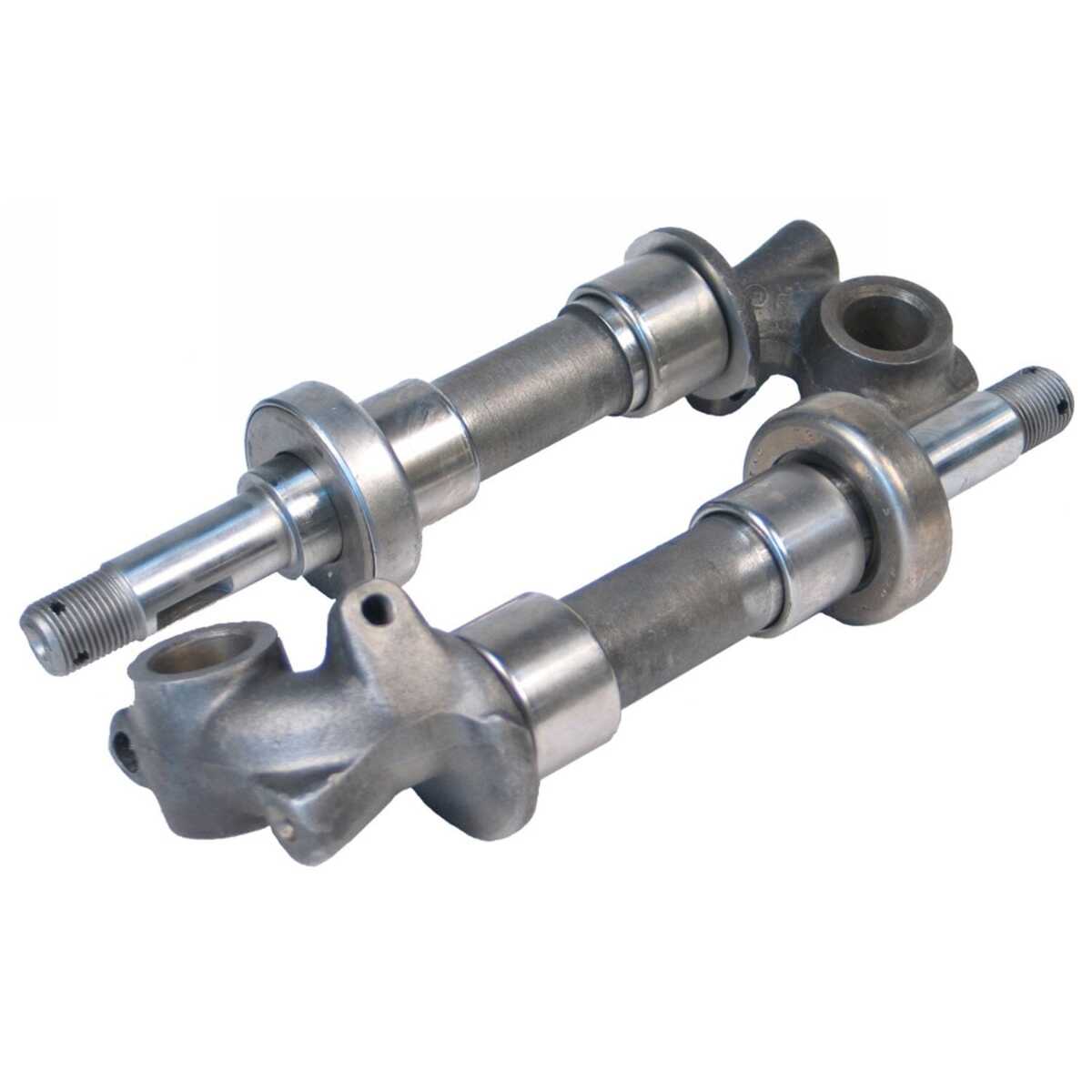

Steering King Pins for 1947-1949 Studebaker Commander

Specifications

PartNo: 30435
Note: From Serial #(Y)4205063 and 4819188, (S)4276102, (C, F, Q, W)42762436 and 4819208~ This part is R&R only. Part must be sent in to be remanufactured.
From Serial #S.B.4340270 and L.A.4829011~ This part is R&R only. Part must be sent in to be remanufactured.
Position: Front
Number of Pieces: 1

King Bolt Type: Straight w/ Support
Pin #1 Length: 5.17
Pin Dia. 1 Step: 1.247
Pin Dia. 2 Step: 1.127
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 1.38
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.829
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: -
Bushing #1 O.D. & Overall Length: -
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust Roller Bearing
Bearing #1 O.D. & Thickness: 2.180 x 0.616
Bearing #2 Type: Needle Bearing
Bearing #2 O.D. & Thickness: 1.490 x 0.985
Bearing #3 Type: Needle Bearing
Bearing #3 O.D. & Thickness: 1.370 x 0.986

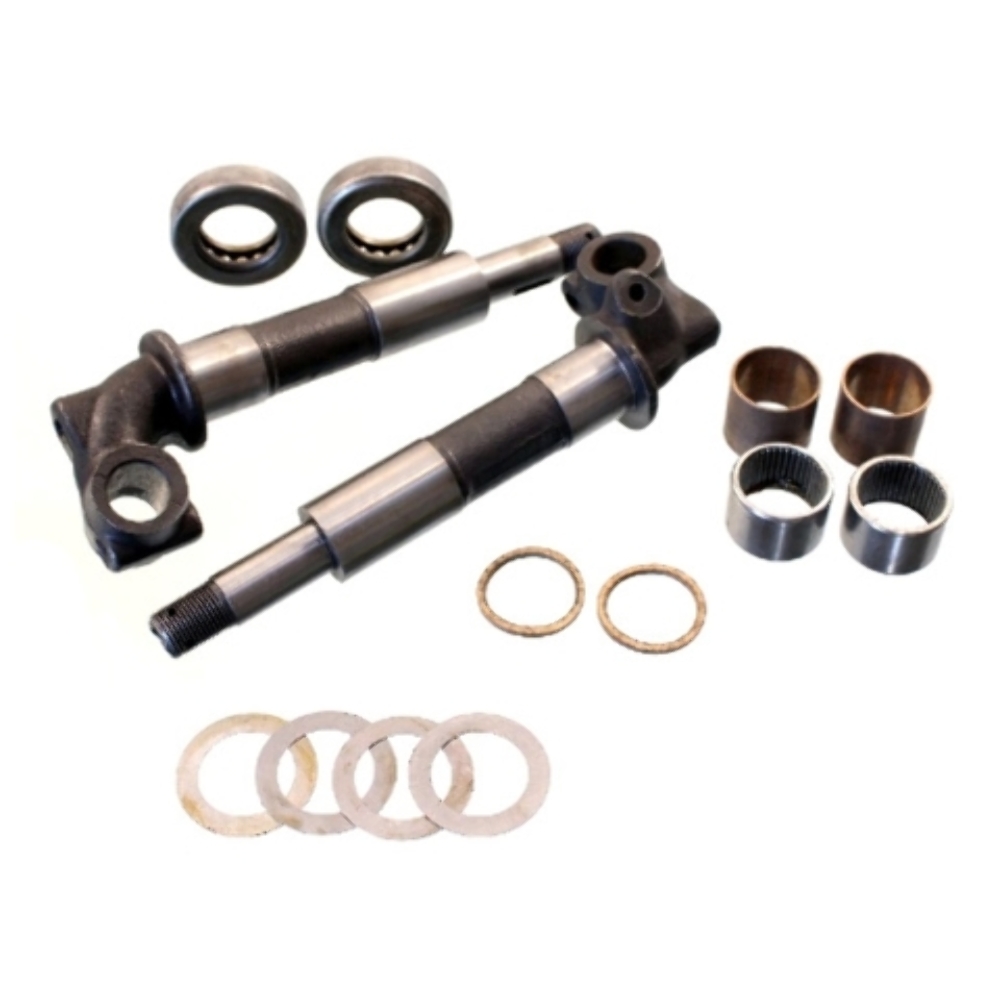

Package Contents: 2 Pins, 4 Needle Bearings, 2 Ball Bearings, 2 Felt Spacers
