Specifications
PartNo: 30529
Note: Oversized; 1.244" x 7.440" King Pin; Metal Bushings; W/ Double Keyway
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 7.45
Pin Dia. 1 Step: 1.244
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: 7.45
Pin #2 Dia.: 1.24
End of Pin to Center of Keyway 1: 2.963
End of Pin to Center of Keyway 2: 2.417
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.64
Width of Keyway 2: 0.64
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.363 x 1.754
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust Bearing
Bearing #1 O.D. & Thickness: 2.188 x 0.628
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

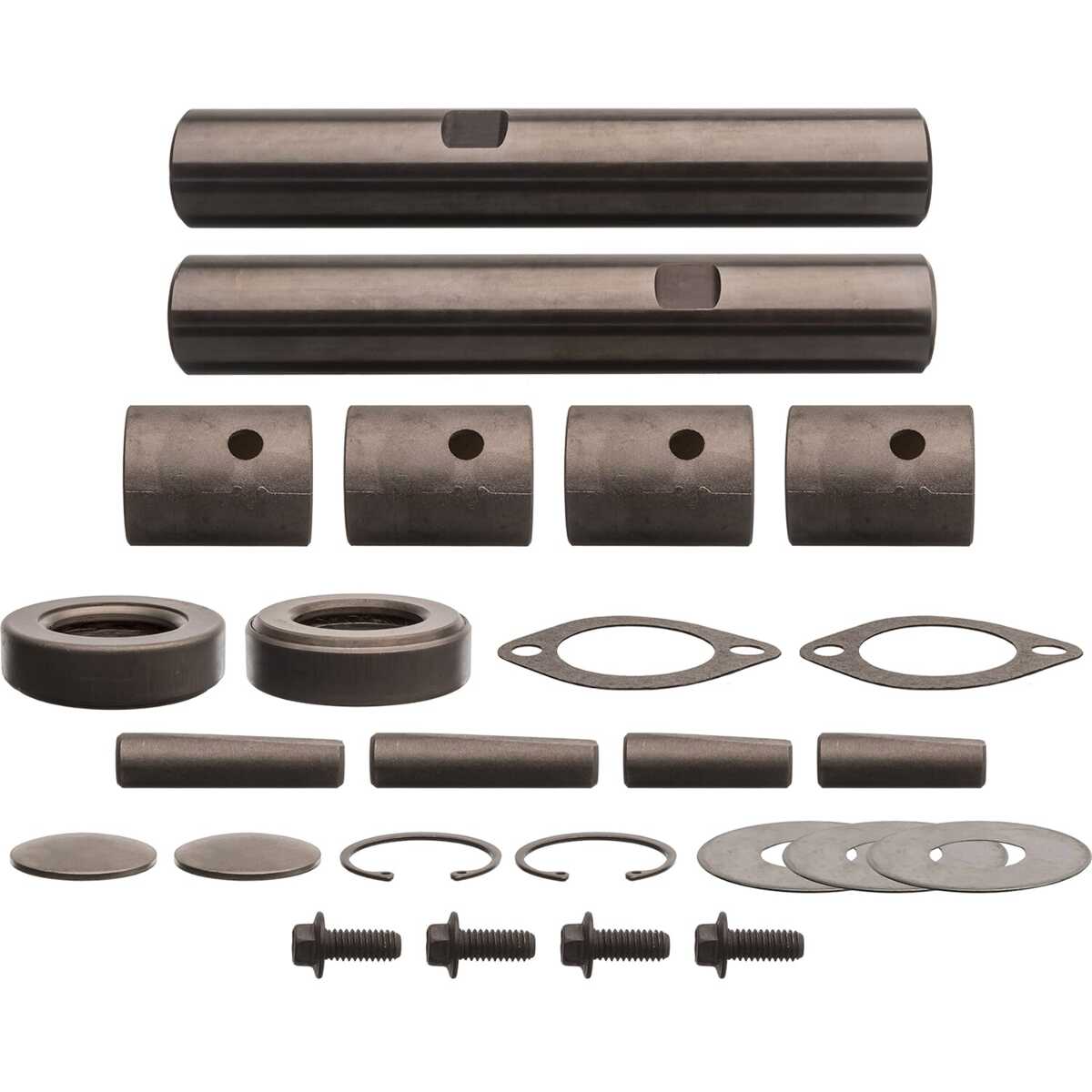

Package Contents: 2 King Pins, 4 Bushings, 2 Bearings, 2 Welch Plugs, 2 Snap Rings, 4 Lock Pins, 4 Bolts, 2 Gaskets, Asst Shims
- Part Number:
- 30529
- Manufacturer Part Number:
- 30529
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
