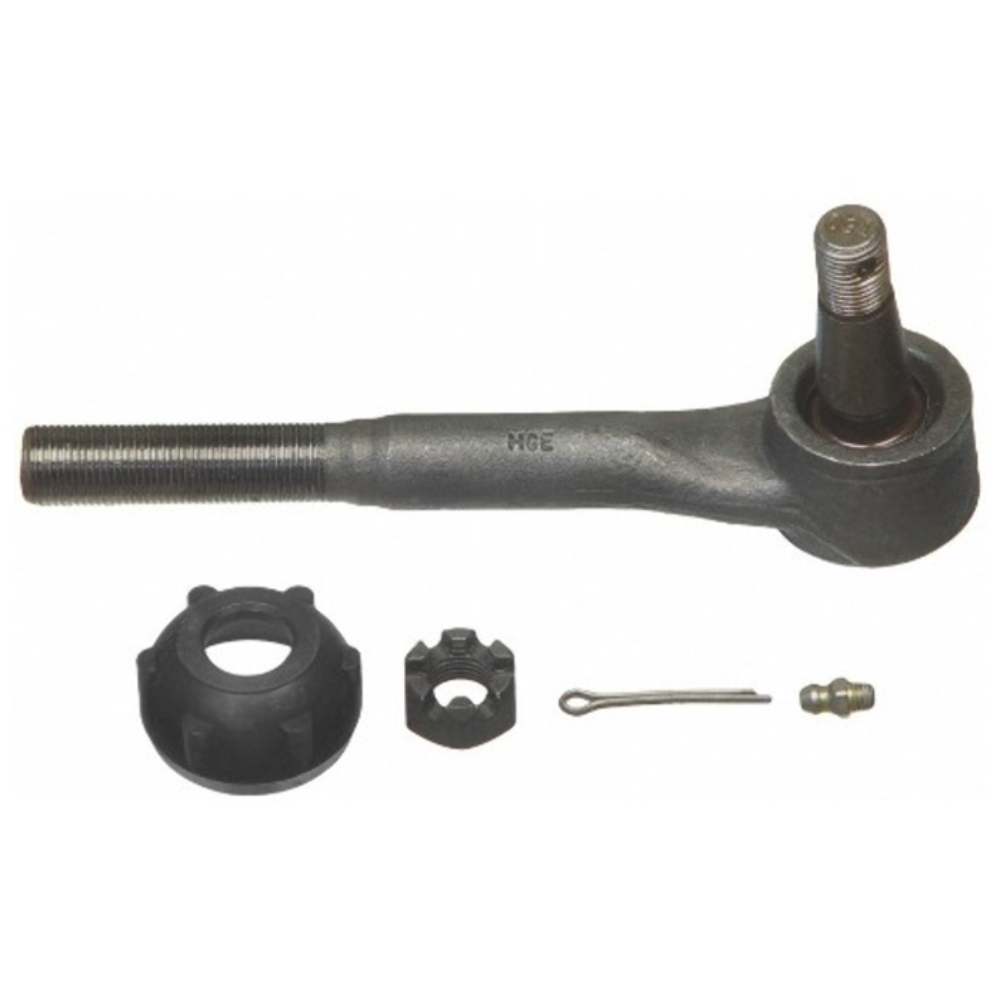

Steering Tie Rod End for 1971-1997 Chevrolet / GMC Front 25530

Note: With Independent Suspension, P Van 3/4 Ton, W/ .688"-18 Threads; 6.74" Long~ With Independent Front Suspension
Position: Front Outer
Drive Type: RWD
Front Brake Type: Disc

Rod Thread: 11/16-18
Bar Size: 0.753
RH/LH: RH
Male or Female: Male
Large Dia. Taper: 0.747
Small Dia. Taper: 0.593
Stud Thread Size: 9/16-18
Stud Length: 0.664
Length Ctr. Stud to End: 6.74
Config.: Straight
Greaseable: Yes
Dust Boot Included: Yes
Package Contents: 1 Tie Rod End, 1 Dust Boot, 1 Castle Nut, 1 Cotter Pin, 1 Grease Fitting

Do you hear creaking, popping, or clunking sounds when turning sharp corners? It's probably the steering tie rod ends that need to be replaced. A steering tie rod end connects the steering rack to the steering knuckle on each front wheel. When they get worn, they make unsettling sounds during turns and may even cause the wheel to collapse!

• Designed and engineered in CAD programs to meet OEM specifications
• Manufactured in the US, made from high grade, long lasting steel
• Available for all popular models of classic and vintage vehicles (see below)
• Get rid of that sound from the wheels when turning corners
• Warning: A broken tie rod end can lead to serious accidents. Replace them today and drive safe

Be sure to double check the fitment section and ensure this part fits your vehicle.
