Specifications
PartNo: 29272
Note: Center Link End At Idler Arm~ 16mm x 1.0~ This part is R&R only. Part must be sent in to be remanufactured.
Position: Right Outer
Number of Pieces: 1
Rod Thread: M16-1.0
Bar Size: 0.815
RH/LH: LH
Male or Female: Male
Large Dia. Taper: 0.625
Small Dia. Taper: 0.58
Stud Thread Size: M14-1.5
Stud Length: M14
Length Ctr. Stud to End: 6.25
Length Ctr Hole to End: 7.25
Length Ctr Stud to Ctr Hole: 2.25
Config.: Bent
Greaseable: Yes
Dust Boot Included: Yes
Tie Rod Hole Dia.: 0.572

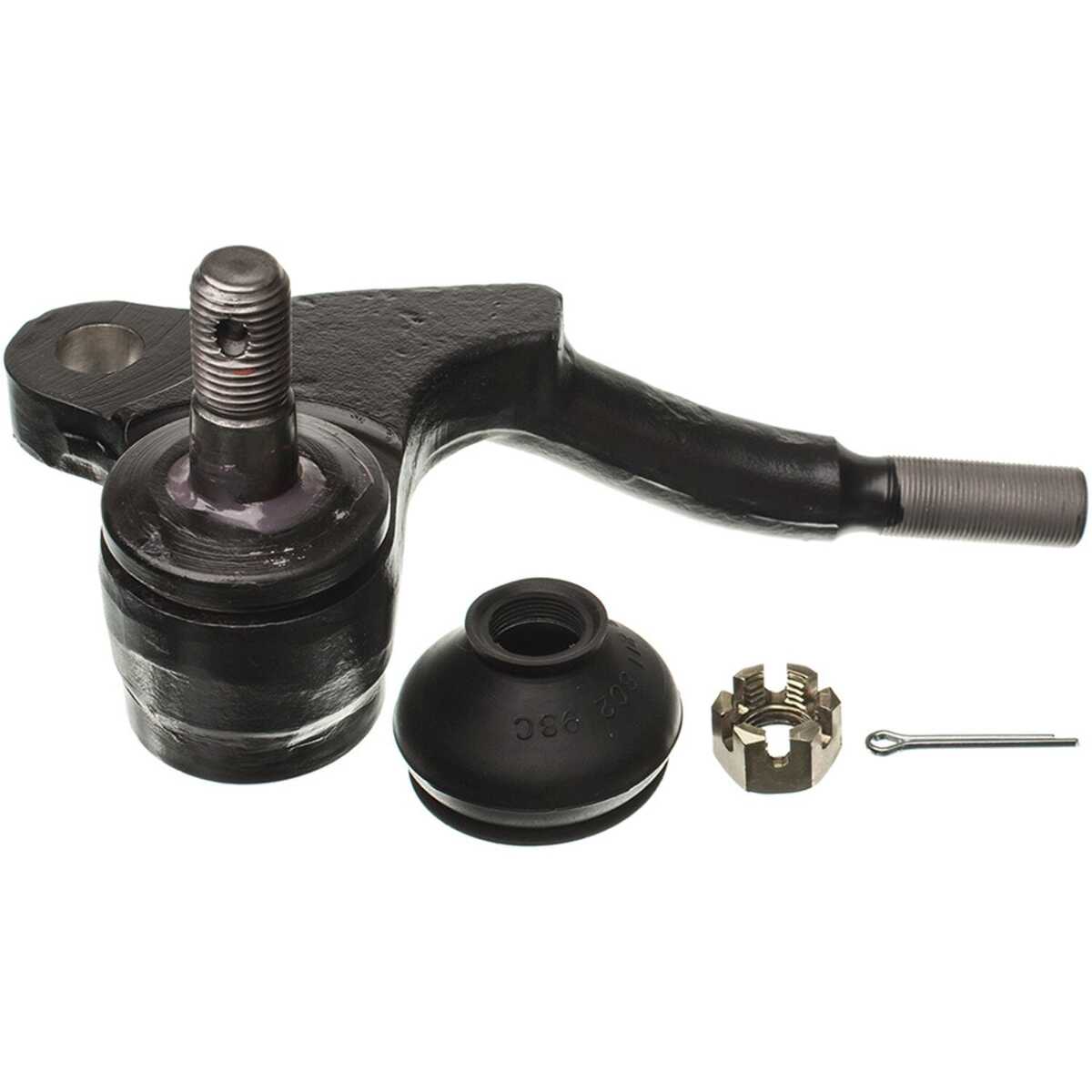

Package Contents: 1 Center Link End, 1 Dust Boot, 1 Castle Nut, 1 Cotter Pin, 1 Grease Fitting
- Part Number:
- 29272
- Manufacturer Part Number:
- 29272
- Specific Placement:
- Right Outer
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
