Steering King Pin for 1949-1955 Domestics 1pc Front 30321

Note: Except 7&8 Passenger & Commercial, Except 8 Passenger, Except 7 and 8 Passenger
Position: Front
Steering System: Power

King Bolt Type: Straight
Pin #1 Length: 5.371
Pin Dia. 1 Step: 0.793
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 1.97
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.739
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 0.922 x 1.198
Bushing #2 Material: Brass
Bushing #2 O.D. & Overall Length: 1.000 x 0.995
Bearing #1 Type: Thrust Ball Bearing
Bearing #1 O.D. & Thickness: 1.652 x 0.531
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

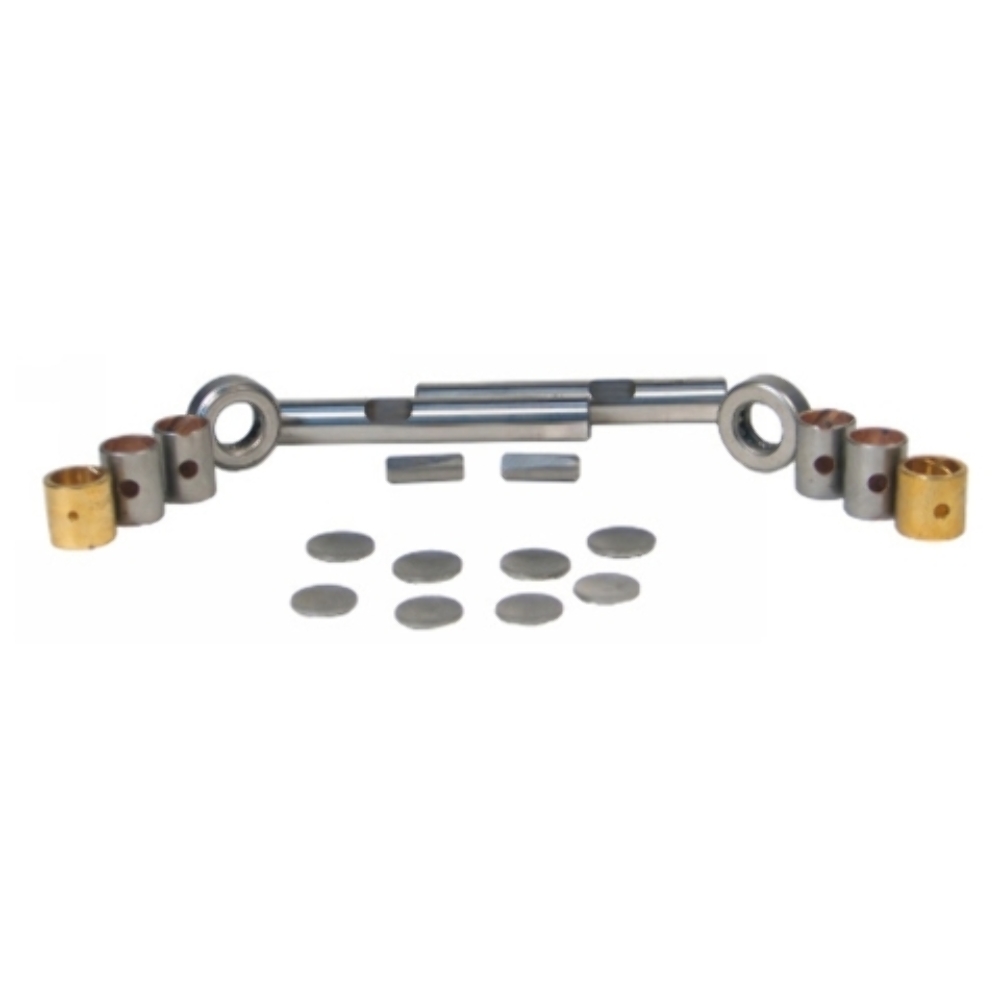

Package Contents: 2 Pins, 6 Bushings, 2 Ball Bearings, 2 Lock Pins, 8 Welch Plugs, Asst Shims
: 30321

Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride

•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the to make the job easier

Be sure to double check the fitment section and ensure this part fits your vehicle.
