Steering King Pin for 1951-1953 Domestics 1pc Front 30936

Note: W/ 1.25" X 6-3/4" King Pin, W/ 1.25" X 6-3/4" King Pin~ Early
Position: Front

King Bolt Type: Straight w/ Support
Pin #1 Length: 6.6875
Pin Dia. 1 Step: 1.249
Pin Dia. 2 Step: 1.125
Pin Dia. 3 Step: 0.876
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 1.539
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.806
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.381 x 1.251
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bearing #1 Type: Thrust Ball Bearing
Bearing #1 O.D. & Thickness: 2.246 x 0.641
Bearing #2 Type: Needle Bearing
Bearing #2 O.D. & Thickness: 1.376 x 0.992
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

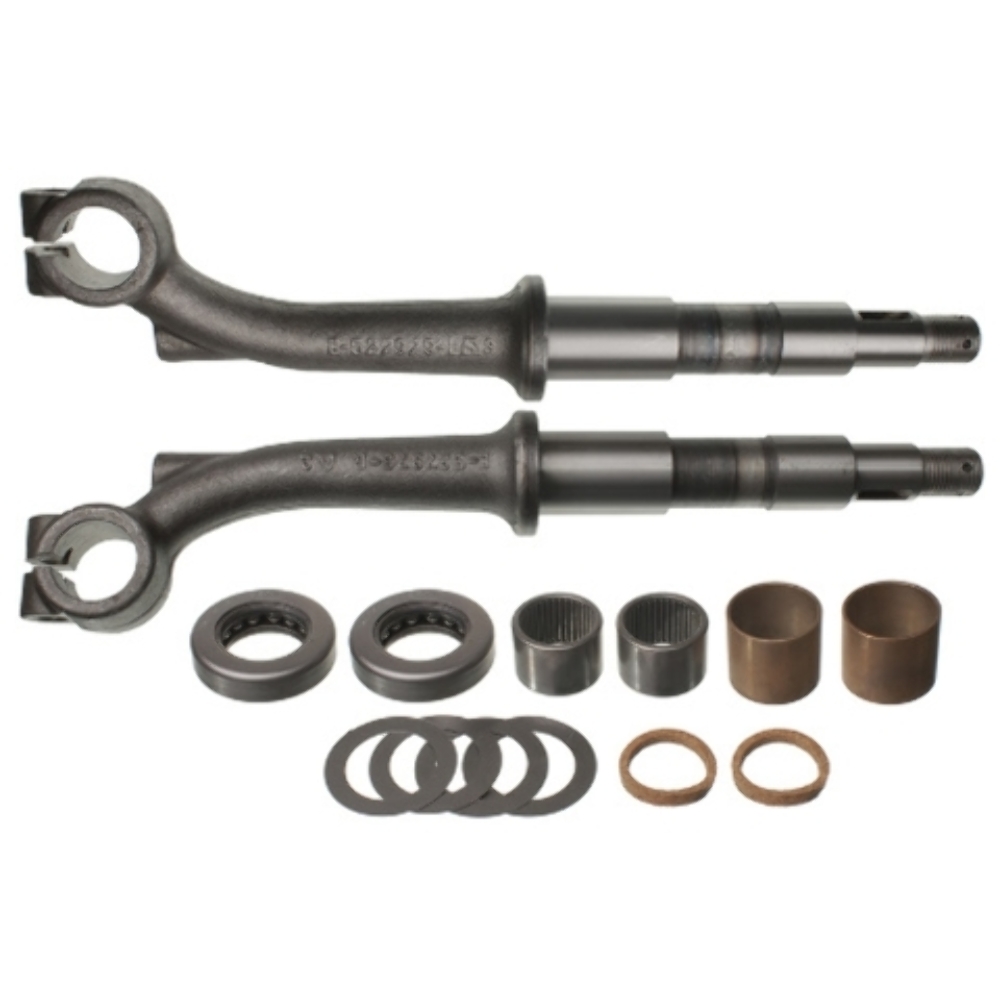

Package Contents: 2 Pins, 2 Bushings, 2 Ball Bearings, 2 Needle Bearings, 2 Cork Gaskets, Asst Shims
: 30936

Has your car's steering system been scaring while sending the car snaking all over the road? It's time to replace the new king pin. Yes, we have all those hard-to-find components you need. Even better, we've packaged them all together to make your restoration project effortless. This is the kingpin of your steering system, exclusively made for the kings of the road! Not you, we're talking about your ride

•All parts are digitally designed with the latest computer equipment for a spot-on fit
•Improve your ride's steering and suspension system for smoother rides - ride like kings
•Each part has been custom made for your vehicle to meet OEM standards
•Available for all popular models of classic and vintage cars and trucks (see below)
•Easy to install, replacement hardware included in the to make the job easier

Be sure to double check the fitment section and ensure this part fits your vehicle.
