Specifications
PartNo: 30484
Note: Standard; 1.124" x 7.190" King Pin; Nylon Bushings; W/ Single Keyway
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 7.19
Pin Dia. 1 Step: 1.122
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 2.292
End of Pin to Center of Keyway 2: 4.348
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.431
Width of Keyway 2: 0.431
Width of Keyway 3: -
Bushing #1 Material: Nylon
Bushing #1 O.D. & Overall Length: 1.249 x 1.389
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Roller
Bearing #1 O.D. & Thickness: 2.097 x 0.623
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

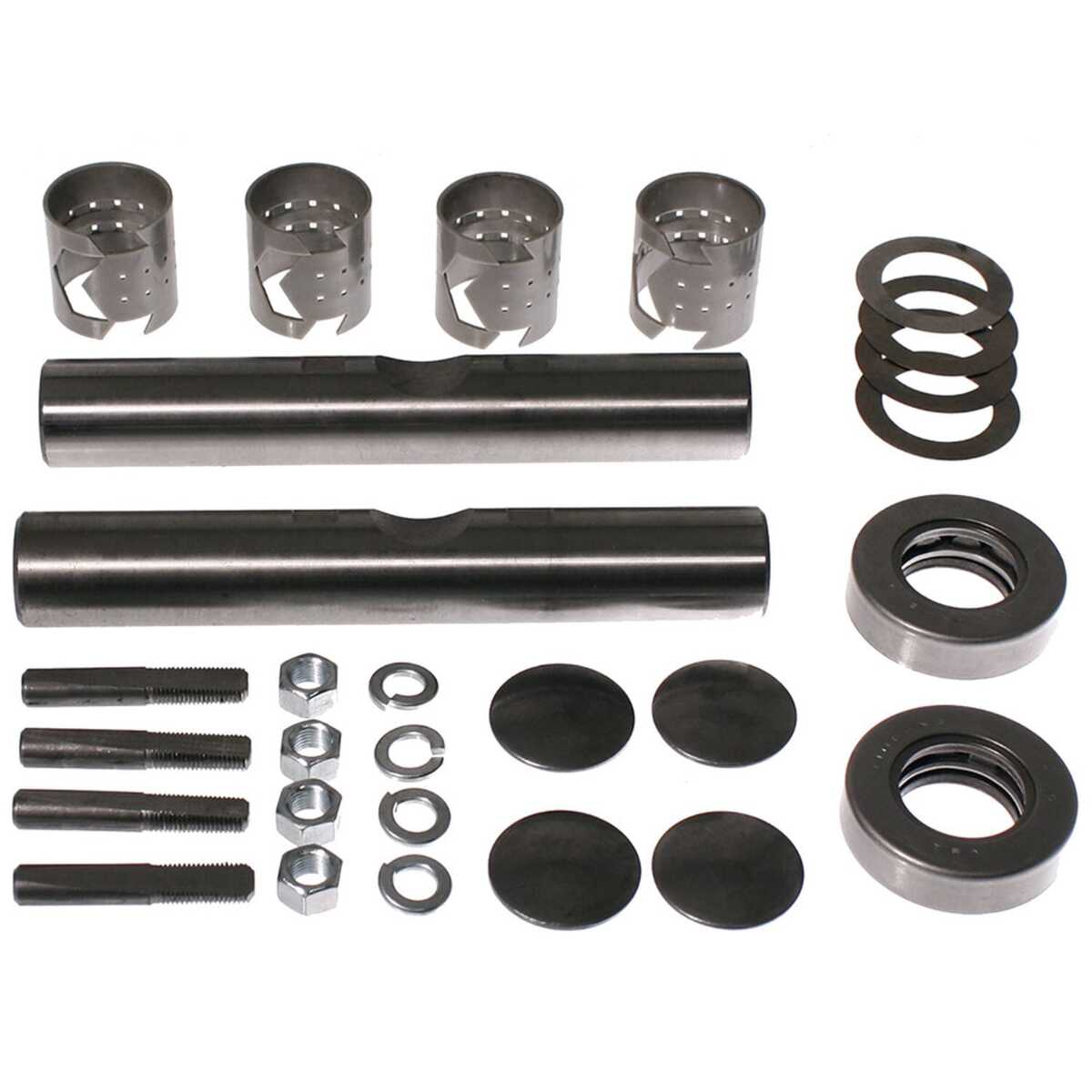

Package Contents: 2 Pins, 4 Bushings, 2 Bearings, 4 Threaded Lock Pins, 4 Lock Washers, 4 Nuts, 4 Welch Plugs, Asst Shims
- Part Number:
- 30484
- Manufacturer Part Number:
- 30484
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
