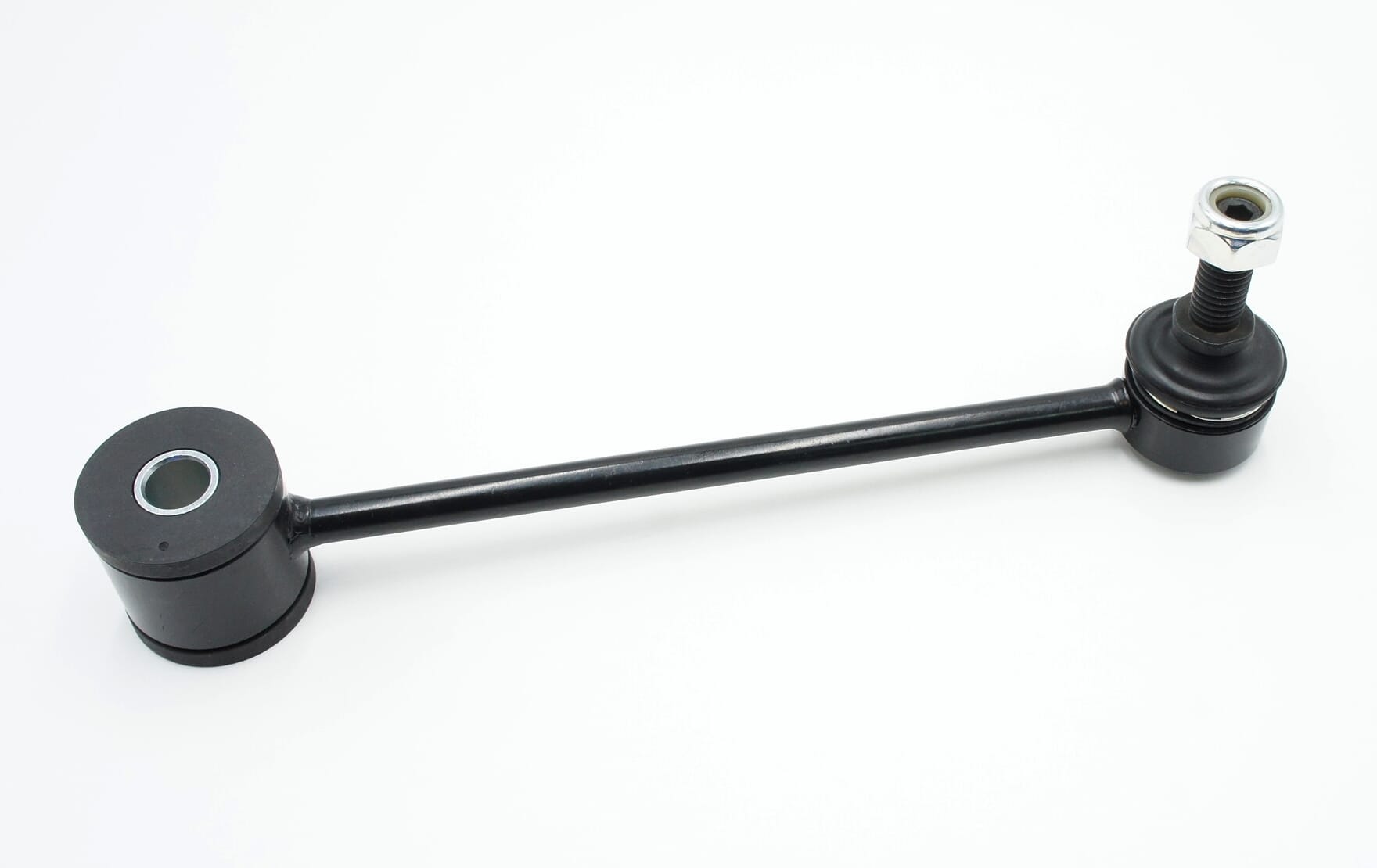

Sway Bar Link for 2000-2019 Cadillac Escalade, Right or Left
Bar Length (mm): 238
Bar Diameter (mm): 10
End Type 1: Stud
End Type 2: Eyelet
Stud Thread (mm): M12X1.75
Eyelet ID (mm): 13
Center to Center Length (mm): 273
Overall Length (mm): 310.5
Boot Material: CR
Includes Hardware: Yes
Mounting Nuts: 1
Housing Finish: Mag/Phos or E-Coat
Stud Articulation Angle: 56 Deg
Ball Stud Ball Diameter (mm): 20 mm
Bar Length (mm): 238
Bar Diameter (mm): 10
End Type 1: Stud
End Type 2: Eyelet
Stud Thread (mm): M12X1.75
Eyelet ID (mm): 13
Center to Center Length (mm): 273
Overall Length (mm): 310.5
Boot Material: CR
Includes Hardware: Yes
Mounting Nuts: 1
Housing Finish: Mag/Phos or E-Coat
Stud Articulation Angle: 56 Deg
Ball Stud Ball Diameter (mm): 20 mm
About Collectors Auto Supply
This auto part is covered by Collectors Auto Supply's three-dimensional promise — you'll get the right part the first time, you can talk to us, and with over 25 years in business and 100,000+ customer transactions, you can trust us to be the right choice to fuel your passion.
- Part Number:
- MSL-80047
- Manufacturer Part Number:
- MSL-80047
- Specific Placement:
- Right or Left
- Number of Pieces:
- 1
