Specifications
PartNo: 30268
Note: W/ 12000# Axle; 1.309/1.607". Tapered Pin; 9.750" Long; Metal Bushings
W/ 11000# Axle; 1.309/1.607". Tapered Pin; 9.750" Long; Metal Bushings
Position: Front
Number of Pieces: 1
King Bolt Type: Tapered
Pin #1 Length: 9.75
Pin Dia. 1 Step: 1.6065
Pin Dia. 2 Step: 1.309
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: -
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: -
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: -
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

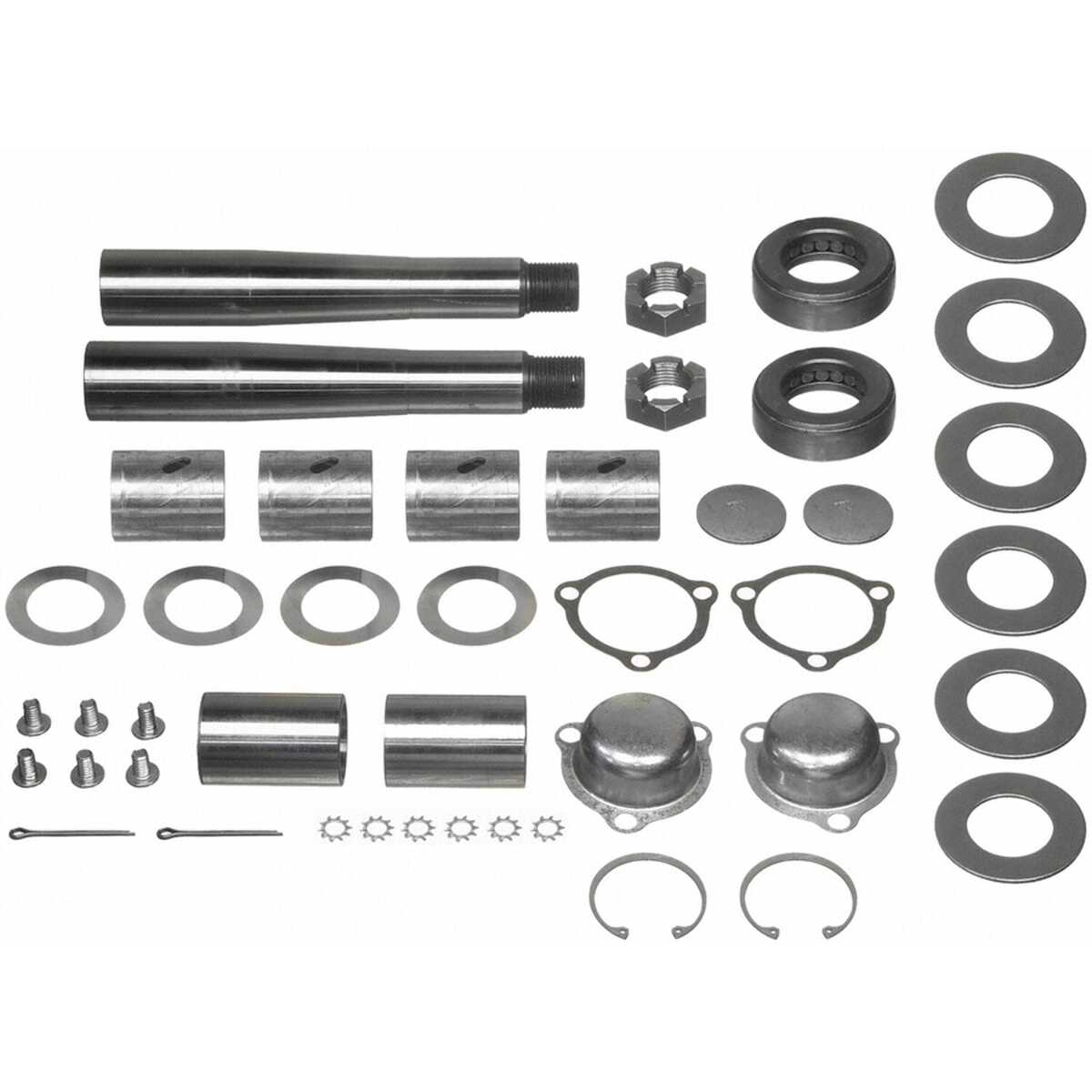

Package Contents: 2 Pins, 4 Bushings, 2 Bearings, 2 Welch Plugs 6 Washers, 2 Cotter Pins, 2 Gaskets, 2 Nuts, 2 Retainers, 2 Snap Rings, 6 Screws, Asst. Shims
- Part Number:
- 30268
- Manufacturer Part Number:
- 30268
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
