Specifications
PartNo: 30404
Note: Pin Diameter 1.249"; Pin Length 7.890"; Metal Bushings
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 7.875
Pin Dia. 1 Step: 1.249
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 3.673
End of Pin to Center of Keyway 2: -
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.47
Width of Keyway 2: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.373 x 1.882
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust Washer
Bearing #1 O.D. & Thickness: 2.383 x 0.438
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

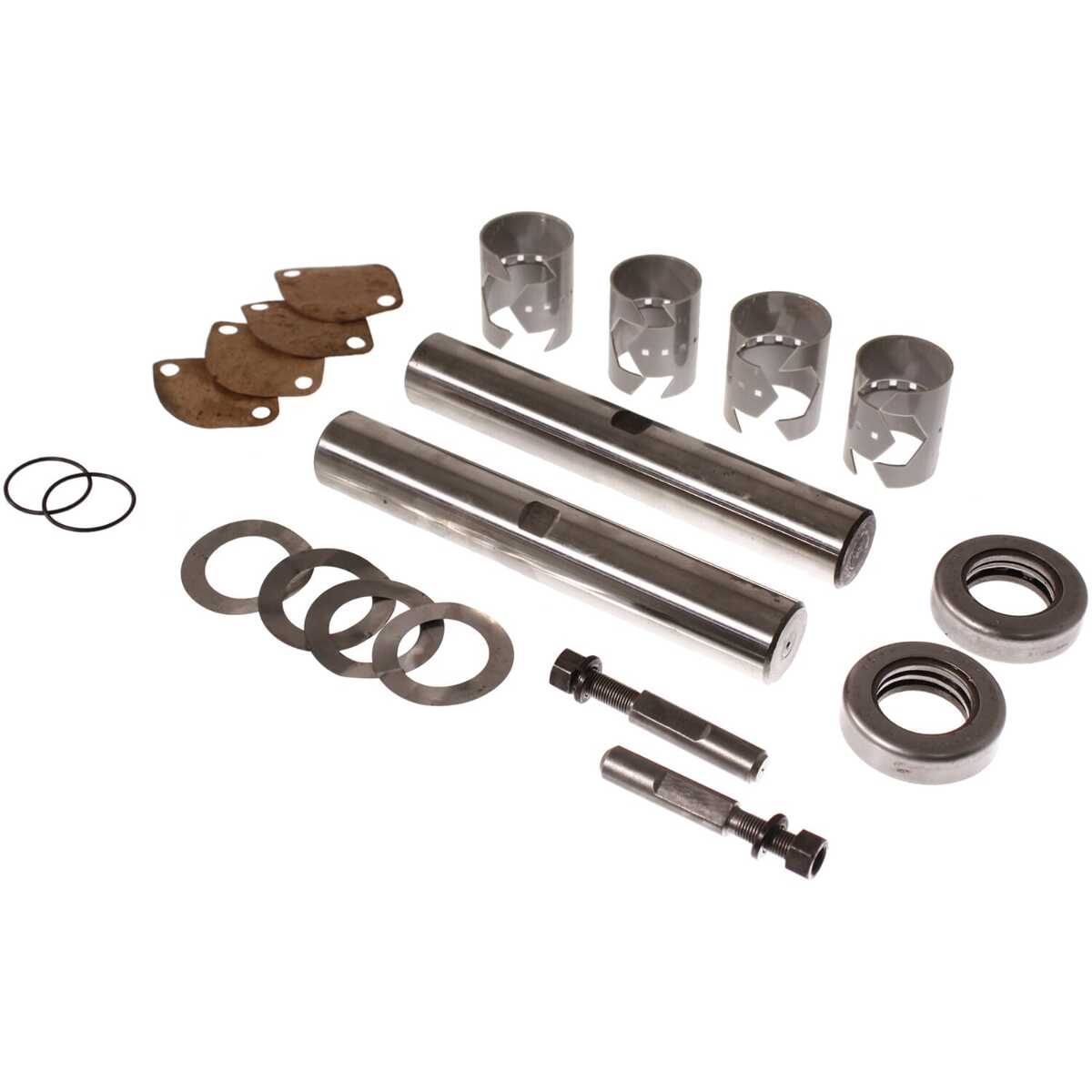

Package Contents: 2 King Pins, 4 Bushings, 2 Bearings, 2 Threaded Lock Pins, 2 Lock Washers, 2 Nuts, 2 O Rings, 4 Seals, Asst Shims
- Part Number:
- 30404
- Manufacturer Part Number:
- 30404
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
