Specifications
PartNo: 30685
Note: Standard; 1.300" x 7.757" King Pin; W/ Metal Bushings
Standard; 1.300" x 7.757" King Pin
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 7.75
Pin Dia. 1 Step: 1.3
Pin Dia. 2 Step: 1.245
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: 7.75
Pin #2 Dia.: 1.3
End of Pin to Center of Keyway 1: 2.465
End of Pin to Center of Keyway 2: 4.55
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.355
Width of Keyway 2: 0.355
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 1.455 x 1.625
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust Bearing
Bearing #1 O.D. & Thickness: 2.185 x 0.625
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

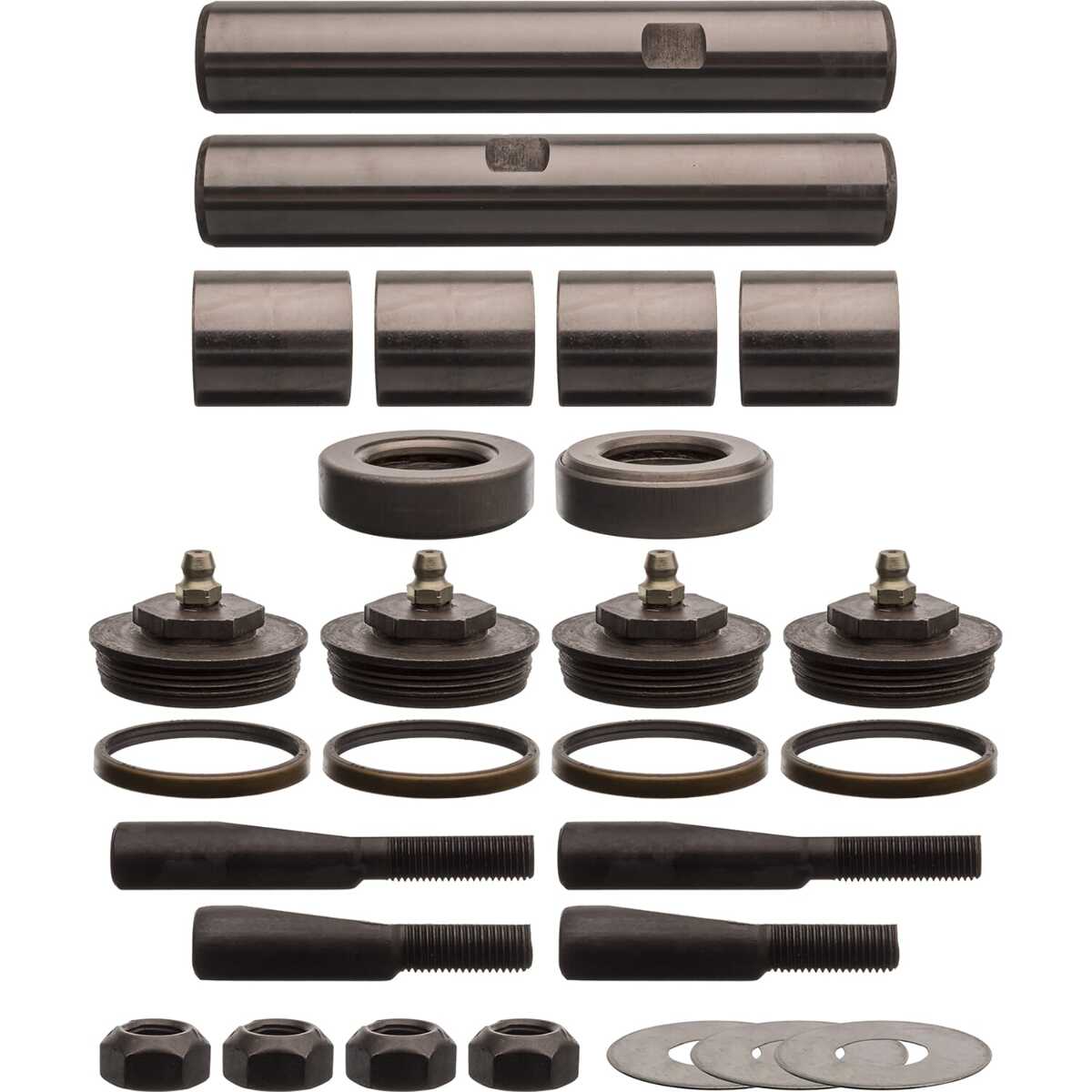

Package Contents: 2 King Pins, 4 Bushings, 2 Bearings, 4 Threaded Plugs, 4 Grease Fittings, 4 Seals, 4 Lock Pins, 4 Lock Nuts, Asst Shims
- Part Number:
- 30685
- Manufacturer Part Number:
- 30685
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
