Specifications
PartNo: 30449
Note: W/ 16000# Axle; 1.999" Pin Diameter.; 11.040" Long; Metal Bushings
W/ 16000 & 20000# Axles; 1.999" Pin Dia.; 11.040" Long; Metal Bushings
W/ 18000# Axle; 1.999" Pin Diameter; 11.040" Long; Metal Bushings
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 11.04
Pin Dia. 1 Step: 1.9985
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 4.62
End of Pin to Center of Keyway 2: 3.8
End of Pin to Center of Keyway 3: -
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

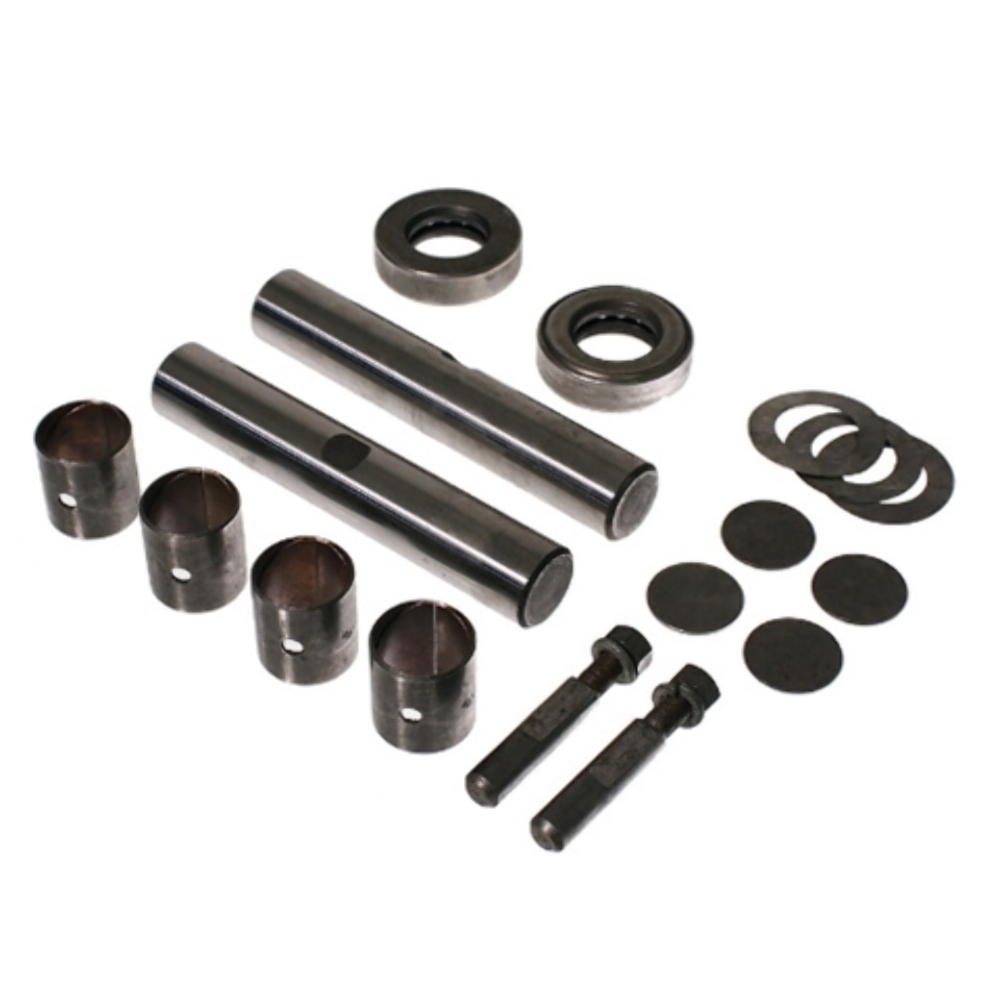

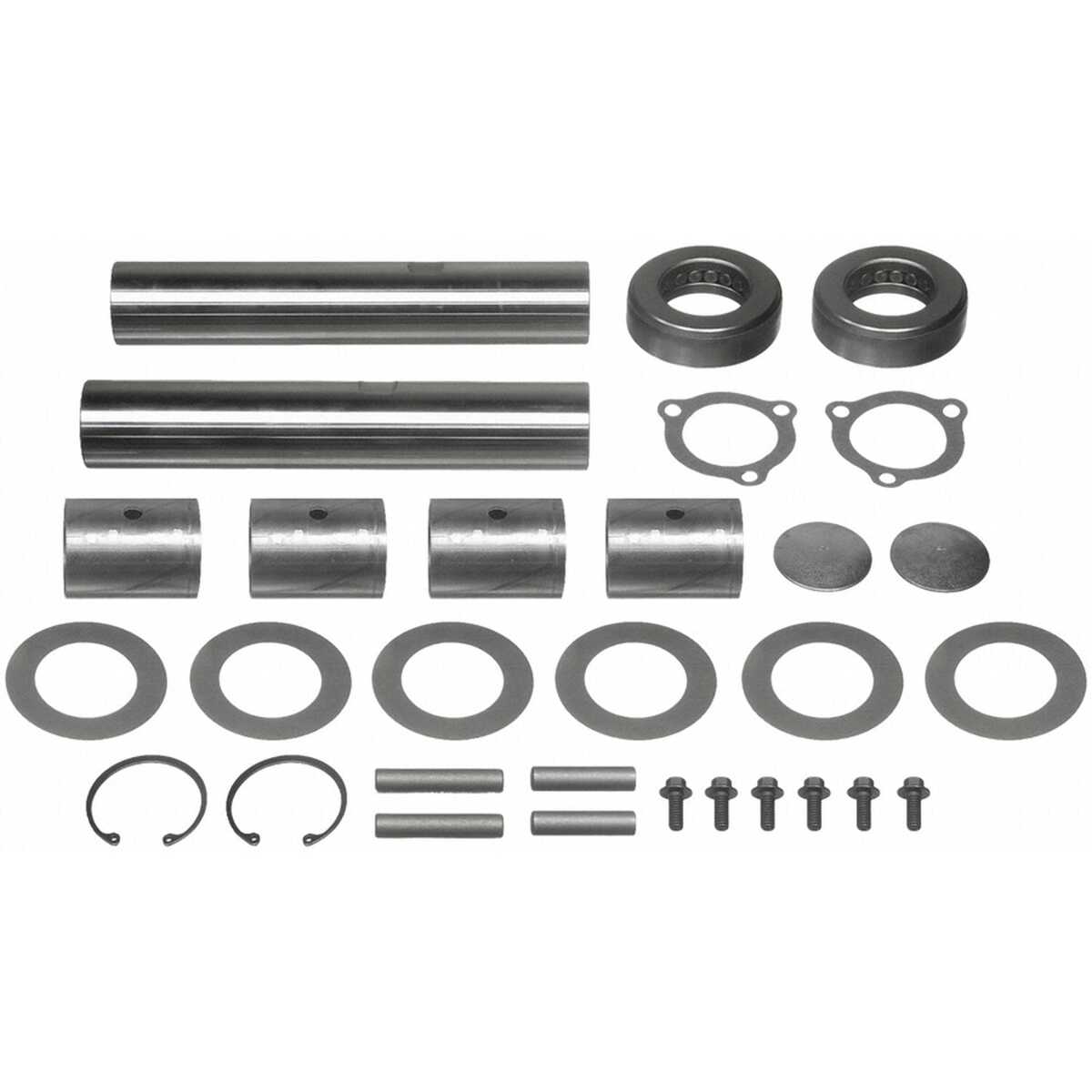

Package Contents: 2 Bolts, 4 Lock Pins, 2 Thrust Bearings, 4 Bushings, 2 Gaskets, 2 Plugs, 2 Rings, 6 Screws, Asst Shims
- Part Number:
- 30449
- Manufacturer Part Number:
- 30449
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
