Specifications
PartNo: 30472
Note: W/ 16000# Axle; 1.999" Pin Diameter; 11.212" Long; Metal Bushings
W/ 16000, 18000 & 20000# Axles; 1.999" Pin Diameter; 11.212" Long; Metal Bushings
W/ 18000 & 20000# Axles; 1.999" Pin Diameter; 11.212" Long; Metal Bushings
W/ 16000 & 18000# Axles; 1.999" Pin Diameter; 11.212" Long; Metal Bushings
W/ 16000, 18000, 20000 & 32000# Axles; 1.999" Pin Diameter; 11.212" Long; Metal Bushings
W/ 18000# Axle; 1.999" Pin Diameter; 11.212" Long; Metal Bushings
W/ 16000# Axle; 1.999" Pin Diameter; 11.212" Long; Metal Bushings; W/ Air Brakes
W/ 15000, 16000, 18000 & 20000# Axles; 1.999" Pin Diameter; 11.212" Long; Metal Bushings
Position: Front
Number of Pieces: 1
King Bolt Type: Straight
Pin #1 Length: 11.25
Pin Dia. 1 Step: 1.999
Pin Dia. 2 Step: -
Pin Dia. 3 Step: -
Pin Dia. 4 Step: -
Pin #2 Length: -
Pin #2 Dia.: -
End of Pin to Center of Keyway 1: 4.017
End of Pin to Center of Keyway 2: 4.57
End of Pin to Center of Keyway 3: -
Width of Keyway 1: 0.629
Width of Keyway 2: 0.629
Width of Keyway 3: -
Bushing #1 Material: Brass
Bushing #1 O.D. & Overall Length: 2.132 x 2.629
Bushing #2 Material: -
Bushing #2 O.D. & Overall Length: -
Bushing #3 Material: -
Bushing #3 O.D. & Overall Length: -
Bearing #1 Type: Thrust Roller
Bearing #1 O.D. & Thickness: 3.686 x 1.132
Bearing #2 Type: -
Bearing #2 O.D. & Thickness: -
Bearing #3 Type: -
Bearing #3 O.D. & Thickness: -

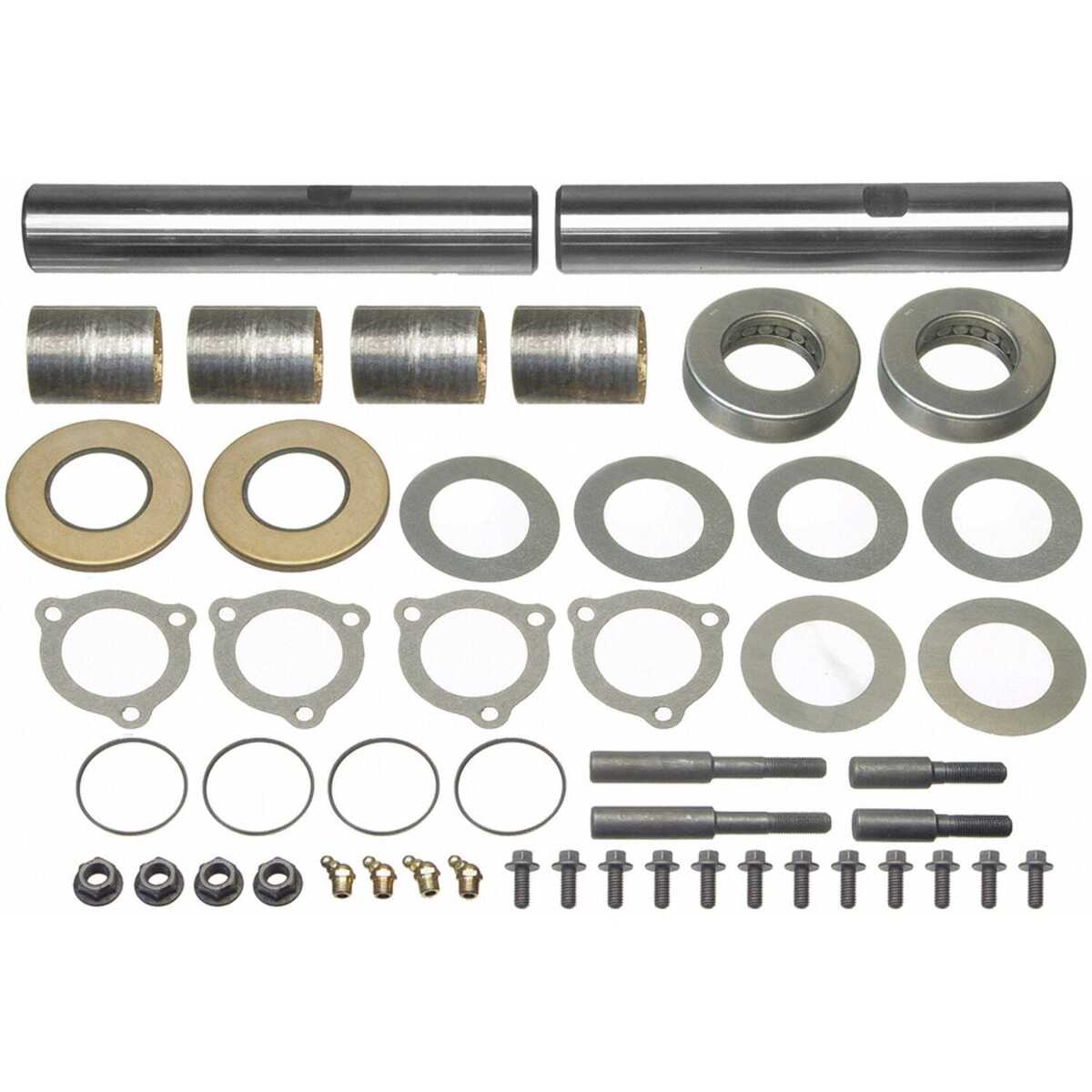

Package Contents: 2 Pins, 4 Bushings, 2 Bearings, 4 Threaded Lock Pins, 12 Bolts, 4 Lock Nuts, 4 Grease Seals, 2 Bearing Seals, 4 Gaskets, 4 Grease Fittings, Asst Shims
- Part Number:
- 30472
- Manufacturer Part Number:
- 30472
- Specific Placement:
- Front
- Number of Pieces:
- 1
- Material:
- Steel
This product comes with a life time guarantee to be free of defects in material and workmanship. Our guarantee is valid only if our product has been properly installed in the vehicle for which it was designed to fit.
